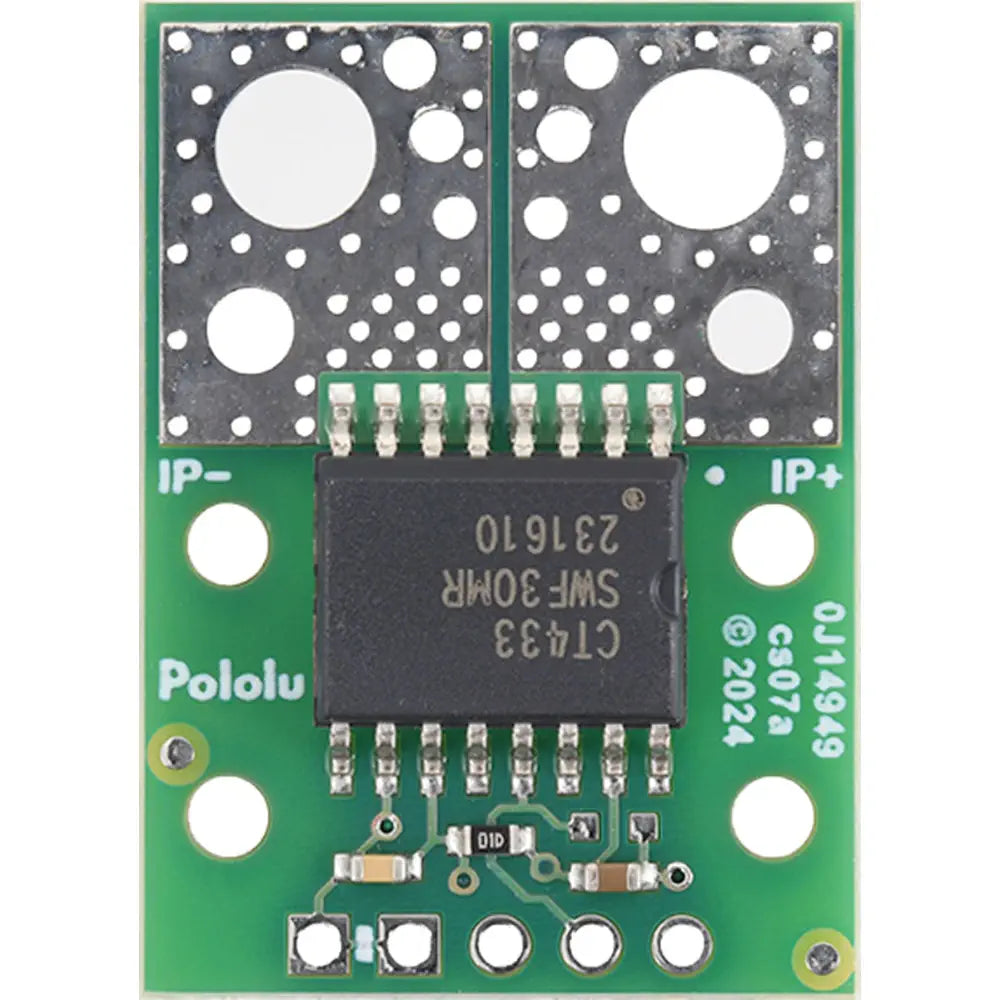

Pololu CT433-HSWF30MR TMR Current Sensor Compact Carrier -30A to +30A, 3.3V

Description Pololu CT433-HSWF30MR TMR Current Sensor Compact Carrier -30A to +30A, 3.3V Optimized for high dV/dt applications Ensures electrical isolation and stability Measures bidirectional current ±30A Offers 1 MHz high-bandwidth output Compatible with breadboards and headers The Pololu CT433-HSWF30MR TMR Current Sensor Compact Carrier -30A to +30A, 3.3V is a compact, electrically isolated current sensor optimized for high dV/dt applications. It utilizes Allegro’s XtremeSense™ TMR technology to provide high accuracy and bandwidth for current measurements. The sensor is designed for bidirectional input currents ranging from -30 A to +30 A and operates with a supply voltage between 3.0 V and 3.6 V. This sensor features a high-bandwidth 1 MHz analog output and a typical response time of 300 ns. It is suitable for applications requiring electrical isolation and can be inserted anywhere along the current path. The output is not ratiometric, ensuring stability against noisy supplies. The sensor is compatible with standard solderless breadboards and 0.1″-pitch header pins. Note: This product is intended for use below 30 V. Exceeding temperature or current limits can cause permanent damage to the sensor. Handle with care to avoid burns. View more What's Included 1x Pololu CT433-HSWF30MR TMR Current Sensor Compact Carrier -30A to +30A, 3.3V Dimensions 0.8 x 1 inches Links PDF File Pololu CT433-HSWF30MR TMR Current Sensor Compact Carrier -30A to +30A, 3.3V - Datasheet Specifications Bidirectional input current range: -30 A to +30 A Supply voltage range: 3.0 V to 3.6 V Sensitivity: 33.3 mV/A Zero point voltage: 1.65 V Features a 2-layer PCB High-bandwidth analog output of 1 MHz Typical response time: 300 ns Output is non-ratiometric Optional overcurrent fault output available Operating temperature range: -40°C to 125°C Compatible with 0.1″-pitch header pins and standard solderless breadboards
