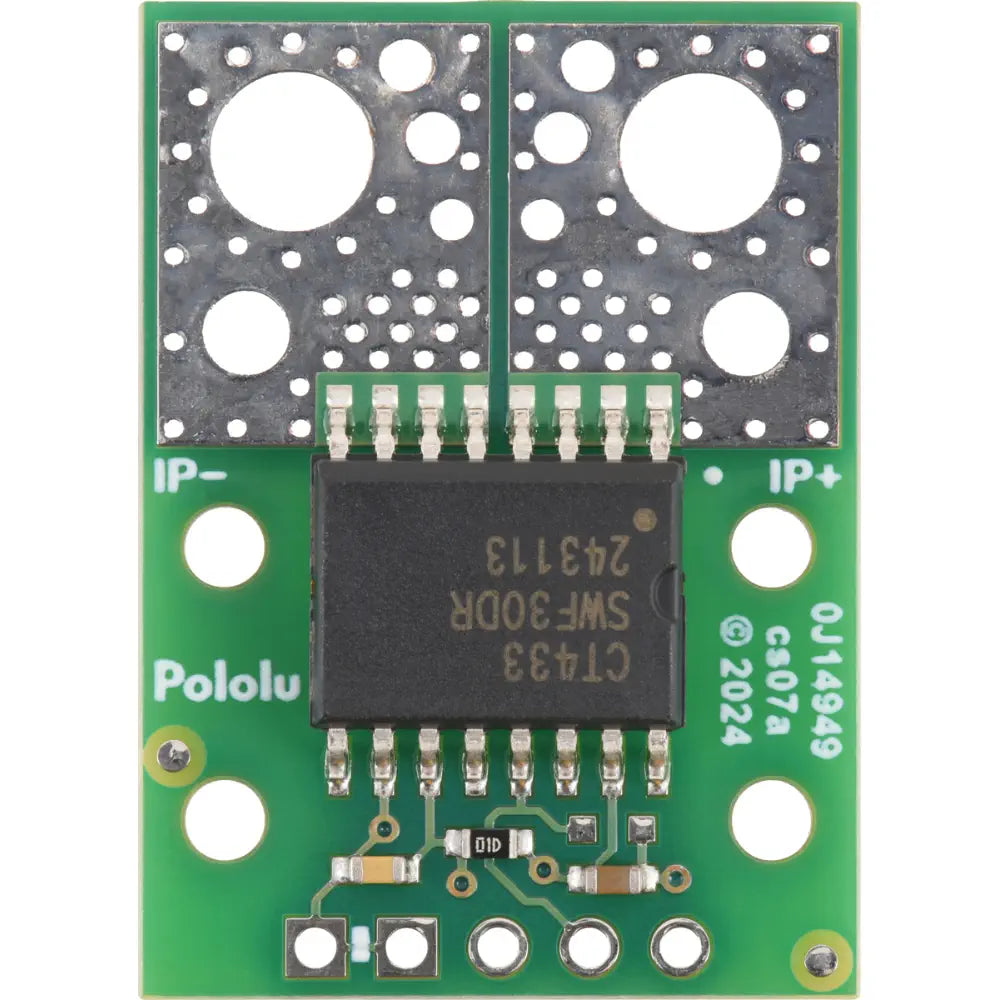

Pololu CT433-HSWF30DR TMR Current Sensor Compact Carrier 0A to 30A, 3.3V

Description Pololu CT433-HSWF30DR TMR Current Sensor Compact Carrier 0A to 30A, 3.3V Features high accuracy TMR technology Provides 1 MHz analog output Supports 0-30 A current range Operates at 3.0-3.6 V supply Ensures response time of 300 ns The Pololu CT433-HSWF30DR TMR Current Sensor Compact Carrier 0A to 30A, 3.3V is a compact, electrically isolated current sensor optimized for high dV/dt applications. It utilizes Allegro’s XtremeSense™ TMR technology to provide high accuracy and bandwidth for current measurements, with a 1 MHz analog output voltage proportional to AC or DC currents. This sensor is designed for unidirectional input currents ranging from 0 A to 30 A and operates with a supply voltage between 3.0 V and 3.6 V. It features a typical response time of 300 ns and is immune to noisy supplies due to its non-ratiometric output. Note: This product is intended for use below 30 V. Exceeding temperature or current limits can cause permanent damage to the sensor. View more What's Included 1x Pololu CT433-HSWF30DR TMR Current Sensor Compact Carrier 0A to 30A, 3.3V Dimensions 0.8 x 1 inches Links PDF File Pololu CT433-HSWF30DR TMR Current Sensor Compact Carrier 0A to 30A, 3.3V - Datasheet Specifications Unidirectional current range: 0 to 30 A Supply voltage: 3.0 V to 3.6 V Sensitivity: 66.7 mV/A Zero point: 0.65 V PCB layers: 2 High-bandwidth 1 MHz analog output Typical response time: 300 ns Output is not ratiometric Optional overcurrent fault output Operating temperature range: -40°C to 125°C Primary current path resistance: 1 mΩ
