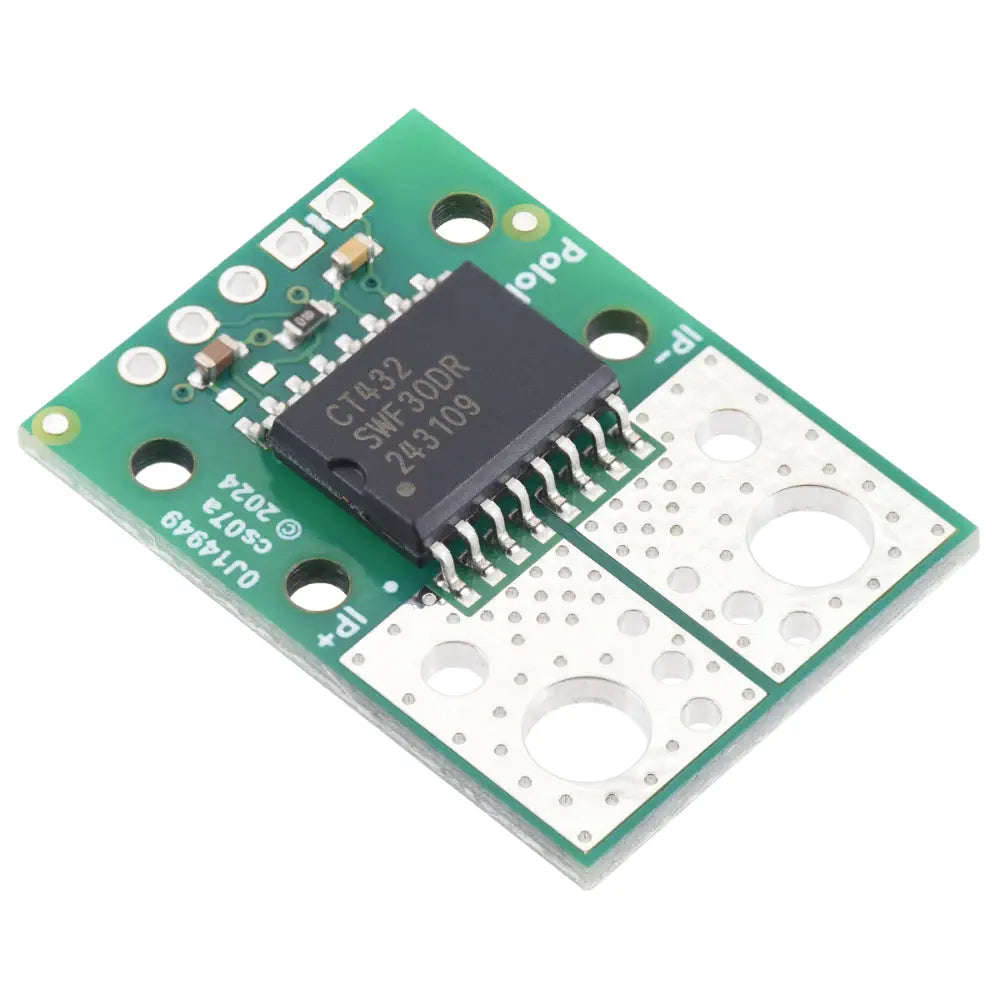

Pololu CT432-HSWF30DR TMR Current Sensor Compact Carrier 0A to 30A, 5V

Description Pololu CT432-HSWF30DR TMR Current Sensor Compact Carrier 0A to 30A, 5V Offers high accuracy with 133.3 mV/A sensitivity Features high-bandwidth 1 MHz output Ensures stability with non-ratiometric output Measures currents from 0A to 30A Compact design with 0.8"×1" dimensions The Pololu CT432-HSWF30DR TMR Current Sensor Compact Carrier 0A to 30A, 5V is a compact, electrically isolated current sensor optimized for high dV/dt applications. It utilizes Allegro’s XtremeSense™ TMR technology to provide high accuracy and bandwidth for current measurements. The sensor is designed for unidirectional input currents from 0 A to 30 A and operates with a supply voltage of 4.75 V to 5 V. The sensor outputs an analog voltage proportional to the current, with a sensitivity of 133.3 mV/A and a zero point at 0.5 V. It features a high-bandwidth 1 MHz output and a typical response time of 300 ns. The sensor's non-ratiometric output ensures stability against supply voltage variations. Note: This product is intended for use below 30 V. Exceeding temperature or current limits can cause permanent damage to the sensor. Handle with care to avoid burns. View more What's Included 1x Pololu CT432-HSWF30DR TMR Current Sensor Compact Carrier 0A to 30A, 5V Dimensions 0.8 x 1 inches Links PDF File Pololu CT432-HSWF30DR TMR Current Sensor Compact Carrier 0A to 30A, 5V - Datasheet Specifications Unidirectional current range: 0 to 30 A Supply voltage: 4.75 V to 5 V Sensitivity: 133.3 mV/A Zero point: 0.5 V PCB layers: 2 High-bandwidth 1 MHz analog output Typical response time: 300 ns Operating temperature range: -40°C to 125°C Primary current path resistance: 1 mΩ Non-ratiometric output Optional overcurrent fault output
