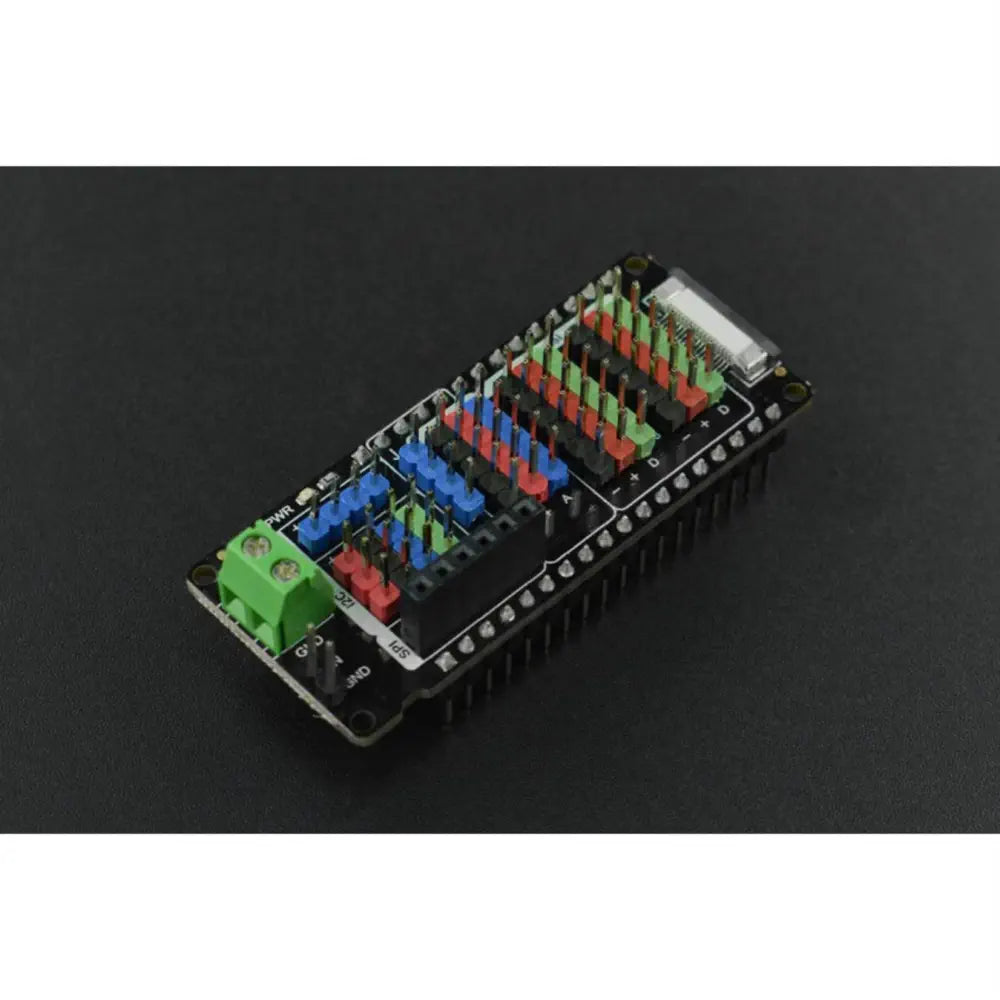

Gravity IO Shield for FireBeetle M0 and ESP32-E

Description Gravity IO Shield for FireBeetle M0 and ESP32-E Offers various ports Specially designed for FireBeetle 2 series Comes with a power input socket Doesn't require soldering Supports various Gravity sensors and modules The Gravity IO Shield for FireBeetle M0 and ESP32-E is specially designed for FireBeetle 2 series (M0, ESP32-E). This Gravity IO expansion shield offers various ports including digital, analog, I2C, UART, SPI, etc. Also, it comes with a power input socket for connecting the external power supply as well as EN pin for cutting off the power supply to the main-board. Note: This expansion board is specifically designed for FireBeetle 2 controllers series:M0, ESP32-E, not suitable for the original FireBeetle Series. View more What's Included 1x Gravity IO Shield for FireBeetle M0 and ESP32-E Dimensions Size 60 x 25.4 mm / 2.36 x 1 inch Links Website Gravity IO Shield for FireBeetle M0 and ESP32-E - Wiki Specifications All pins brought out onto female headers Digital IO x12: GP0-3, GP5-7, GP9-13 Analog IO x5: A0-A4 UART: 1 I2C (In Parallel): 3 SPI: 1 PH2.0 Power Port: 3.3 ~ 5.5 V Screen: GDI
