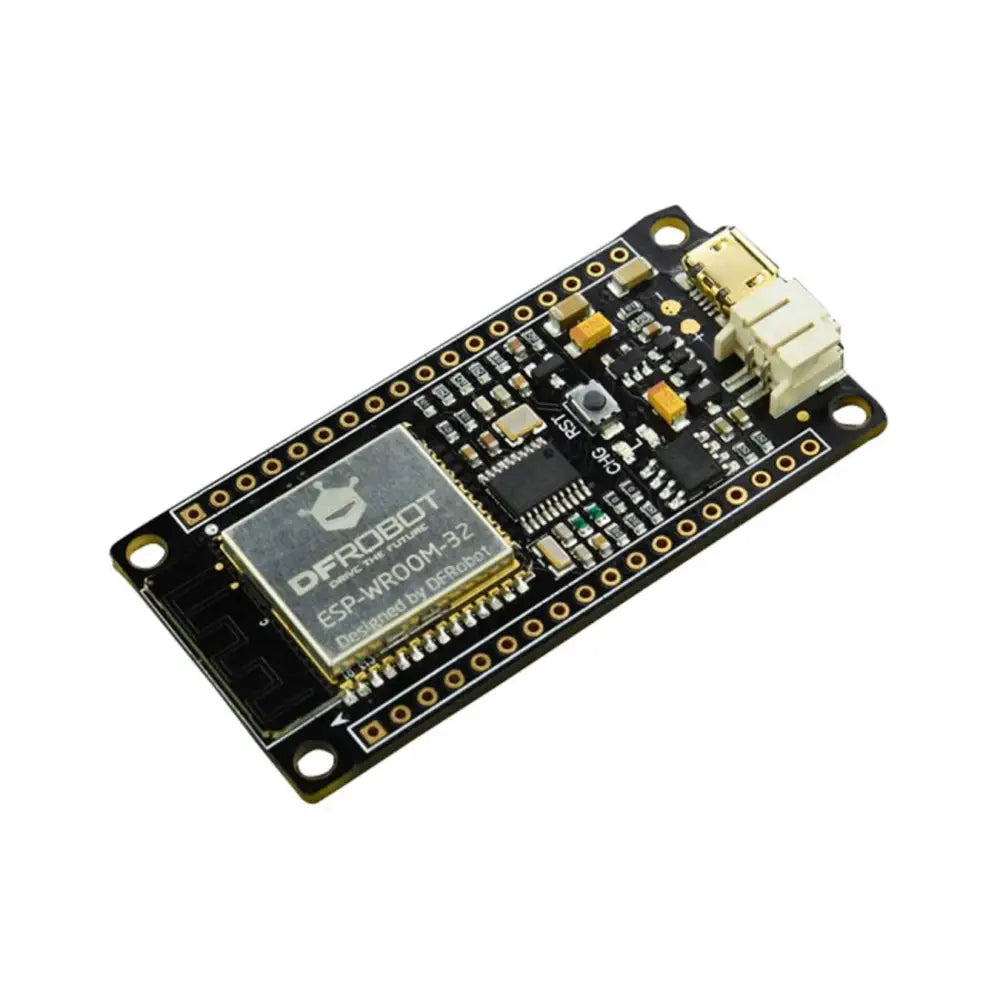

FireBeetle ESP32 IOT Microcontroller
Description Compatible with products in the DFRobot FireBeetle serials Low-power consumption Quick Response(the top frequency is 400KHz) Small size, convenient to install The FireBeetle ESP32 IOT Microcontroller is the low-power consumption micro-controller intentionally designed for Internet of Things (IoT) projects. FireBeetle Board - ESP32 integrates a Dual-Core ESP-WROOM-32 module supports MCU and Wi-Fi and Bluetooth dual-mode communication. The electric current is just 10μA in the deep-sleep mode. The main controller supports two power supply methods: USB and 3.7V external lithium battery. And both USB and external DC can charge the Lipo battery directly. FireBeetle Board-ESP32 has made a special hardware design for Arduino IDE. You can make a download without switching booth-mode manually. View more Dimensions 24 × 53(mm)/0.94 x 2.09(inches) Mounting hole: inner diameter 3.1mm; outside diameter 6mm Specifications Working voltage: 3.3V Input voltage: 3.3V~5V Support electric current of low power consumption: 10 μA Support maximum discharge current: 600mA Support maximum charge current: 500mA Support USB charging. Processer: Tensilica LX6 dual core processer (One for high speed connection; one for independent programing). Frequency: 240MHz SRAM：520KB Flash：16Mbit Wi-Fi standard：FCC/CE/TELEC/KCC Wi-Fi protocol: 802.11 b/g/n/d/e/I/k/r (802.11n, high speed can reach to 150 Mbps), converge A-MPDU and A-MSDU, supporting 0.4us protecting interval. Frequency range: 2.4~2.5 GHz Bluetooth protocol: Comply with BR/EDR/BLE standard of Bluetooth v4.2. Bluetooth audio: the current under low power consumption of CVSD and SBC is 10μA Working current: 80mA in average Frequency range: 2.4~2.5GHz Support one-key downloading. Support micropython. On-chip clock: 40MHz crystal and 32.768 KHz crystal. Digital I/O: 10 (default setting of arduino) Simulative input: 5(default setting of arduino) SPI: 1 (default setting of arduino) I2C: 1 (default setting of arduino) I2S: 1 (default setting of arduino) LED_BUILTIN：D9 Interface: FireBeetle series compatible Working temperature: -40℃~+85℃
