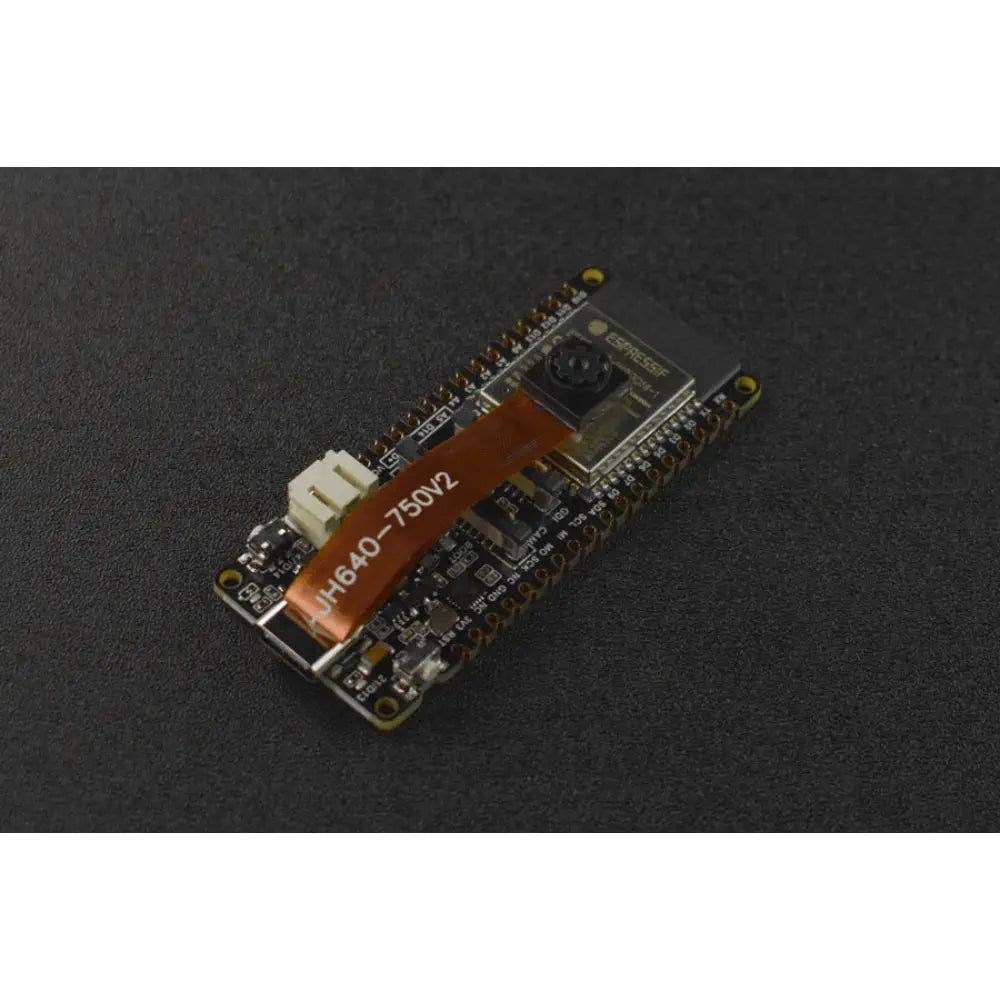

FireBeetle 2 Board ESP32-S3 (N16R8) AIoT Microcontroller w/ Camera (Wi-Fi & Bluetooth)
Description FireBeetle 2 Board ESP32-S3 (N16R8) AIoT Microcontroller with Camera (Wi-Fi & Bluetooth on Board) Equipped with an OV2640 camera for image recognition Supports dual-mode communication via WiFi and Bluetooth 5 Features user-friendly design with onboard GDI screen interface Compatible with Arduino IDE, ESP-IDF, and MicroPython The FireBeetle 2 Board ESP32-S3 (N16R8) AIoT Microcontroller with Camera (Wi-Fi & Bluetooth on Board) is a high-performance primary controller, constructed around the ESP32-S3-WROOM-1-N16R8 module. This microcontroller is furnished with an OV2640 camera, making it highly suitable for applications that require image recognition. The ESP32-S3 module is characterized by its substantial storage capacity and a comprehensive set of communication interfaces, making it adaptable to a broad spectrum of application requirements. The board is equipped with an OV2640 camera that provides 2 megapixels, a 68°FOV, and a resolution of up to 1600 x 1200. The ESP32-S3 chip enhances the module's performance by accelerating neural network computing and signal processing workloads. This makes the module an optimal choice for a variety of applications, including speech recognition and image recognition. The FireBeetle 2 ESP32-S3 supports dual-mode communication via WiFi and Bluetooth 5 (LE), simplifying the networking process. It also supports both Bluetooth Mesh protocol and Espressif WiFi Mesh, ensuring more stable communication and a larger coverage area. This development board is designed with user-friendliness in mind, addressing the complexity of screen wiring through its onboard GDI screen interface. It also incorporates power management features, including battery charging and hardware power control. The FireBeetle 2 ESP32-S3 is compatible with the Arduino IDE, ESP-IDF, and MicroPython, allowing developers to use both C and Python to interact with the hardware. View more What's Included 1x FireBeetle 2 Board ESP32-S3 (N16R8) AIoT Microcontroller (Supports Wi-Fi & Bluetooth) 1x OV2640 Camera 1x 18pin-2.54mm Pin Header 1x 18pin-2.54mm Female Header 1x 14pin-2.54mm Pin Header 1x 14pin-2.54mm Female Header Dimensions 25.4 x 60 mm / 1 x 2.36 inch Links PDF File FireBeetle 2 Board ESP32-S3 (N16R8) AIoT Microcontroller w/ Camera (Wi-Fi & Bluetooth) - Schematics Website FireBeetle 2 Board ESP32-S3 (N16R8) AIoT Microcontroller w/ Camera (Wi-Fi & Bluetooth) - Wiki Specifications Operating Voltage: 3.3 V Type-C Input Voltage: 5V DC VCC Input Voltage: 5V DC Max Charging Current: 1A Operating Temperature: -20 to 70 ℃ Processor: Xtensa® dual-core 32-bit LX7 microprocessor Main Frequency: 240 MHz SRAM: 512 KB ROM: 384 KB Flash: 16 MB PSRAM: 8 MB RTC SRAM: 16 KB USB 2.0 OTG full-speed WIFI Protocol: IEEE 802.11b/g/n Bandwidth: Support 20 MHz and 40 MHz at 2.4 GHz band WIFI Mode: Station, SoftAP+Station combined mode WIFI Frequency: 2.4 GHz Frame Aggregation: TX/RX A-MPDU, TX/RX A-MSDU Bluetooth Protocol: Bluetooth 5, Bluetooth mesh Bluetooth Frequency: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
