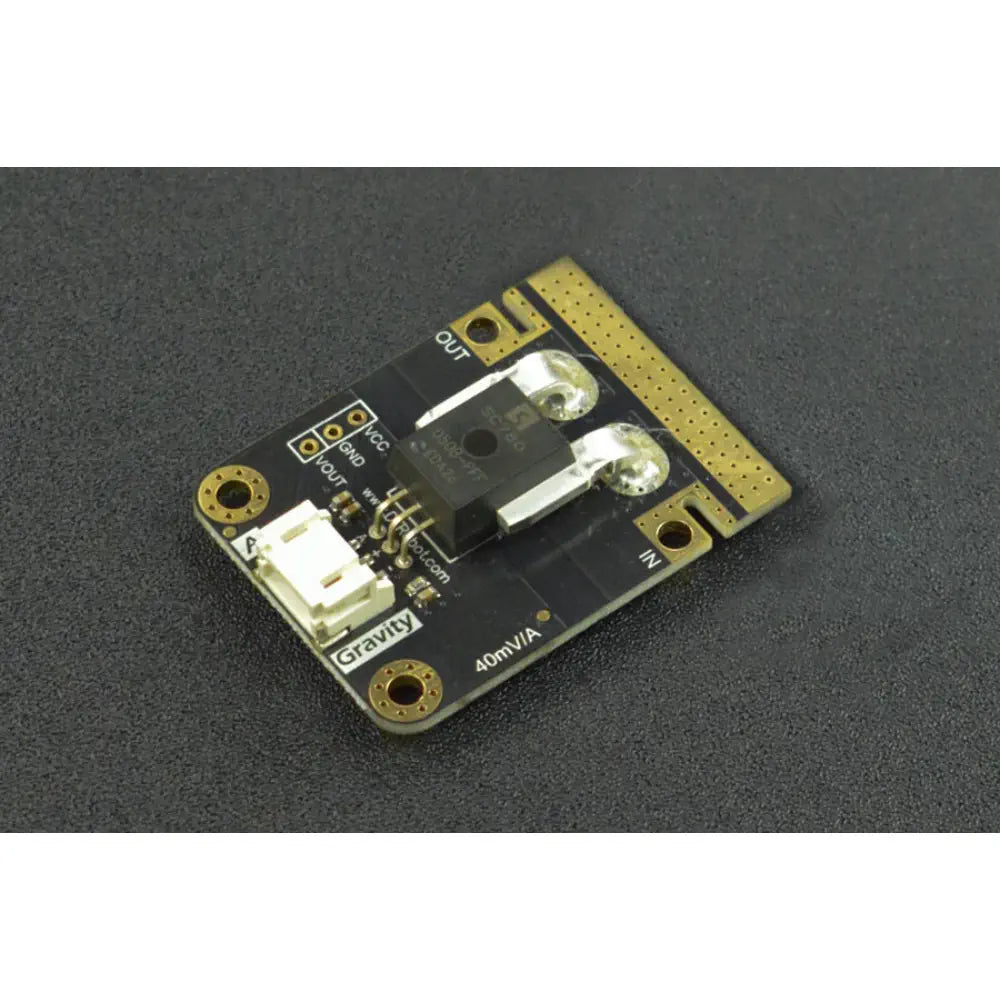

Gravity: Analog Current Sensor 50A (AC/DC) V2

Description Gravity: Analog Current Sensor 50A (AC/DC) V2 Monitor AC/DC currents up to 50A precisely Utilizes Hall Effect-based linear sensor Features robust construction for high durability Provides analog voltage output proportional to current Measures temperatures from -40℃ to 125℃ The Gravity: Analog Current Sensor 50A (AC/DC) V2 is a low-power current sensor designed for precise monitoring of AC and DC currents up to 50A. Utilizing a Hall Effect-based linear sensor, it provides accurate analog voltage output proportional to the sensed current. The device features robust construction with a thick copper conductor for high over-current conditions and enhanced heat dissipation. It is suitable for applications such as motor control, load detection and management, aeromodelling, and robot over-current detection. View more What's Included 1x Gravity: Analog Current Sensor 50A (AC/DC) 1x Gravity 3P Connector Dimensions 32 x 42 mm (1.26 x 1.65") Specifications Operating Voltage: 5V Signal Type: Analog Withstand Voltage in Measurement: 50V (AC) / 120V (DC) Current Measurement Range: -50A to 50A Signal Bandwidth: 120kHz Response Time: 4.6μs Operating Temperature Range: -40°C to 125°C
