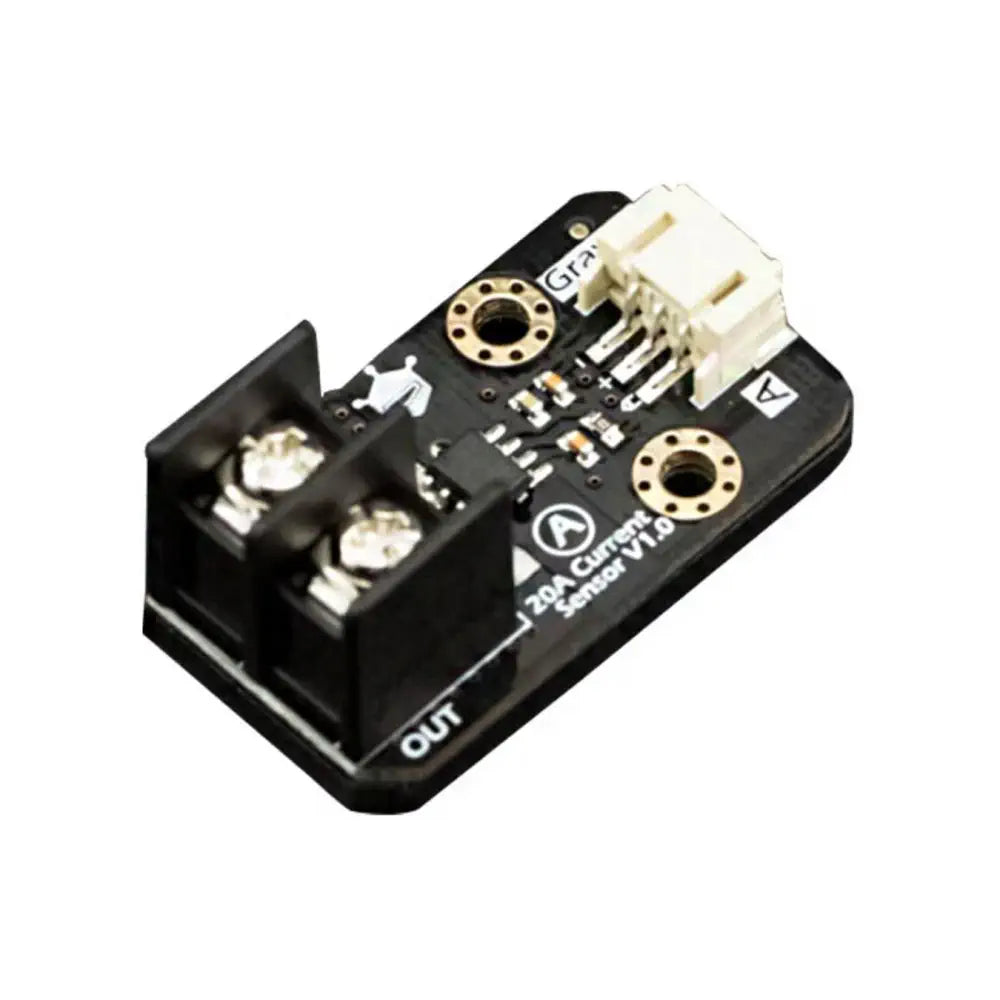

Gravity Analog 20A Current Sensor

Description Gravity 3 pin interface Analog voltage output High voltage isolation Measures DC and AC current This Gravity Analog 20A Current Sensor is based on the Hall current sensing principle. It can be used for AC or DC current measurement, has a wide voltage range, a small footprint, requires no soldering and has a high level of precision. This component is the newest member of Gravity series. All Gravity components include a standard 3-pin interface to make it simple to use and easy to connect to all Arduino compatible boards. It is ideal for any automation control applications. View more What's Included 1x - Gravity: Analog 20A Current Sensor 1x - Gravity Analog Sensor Cable Dimensions 39 x 22 x 17mm/ 1.53 x 0.87 x 0.67 inches Weight: 18g Links PDF File Gravity Analog 20A Current Sensor Datasheet Specifications Power Supply: +5.0V Current Range: 0 ~ ±20A DC，0 ~ 17A (RMS) AC Measurement Endure: 220V AC, 311V DC Relative Error: ±3% Interface: Gravity PH2.0-3P
