Gravity Analog AC Current Sensor (20A)

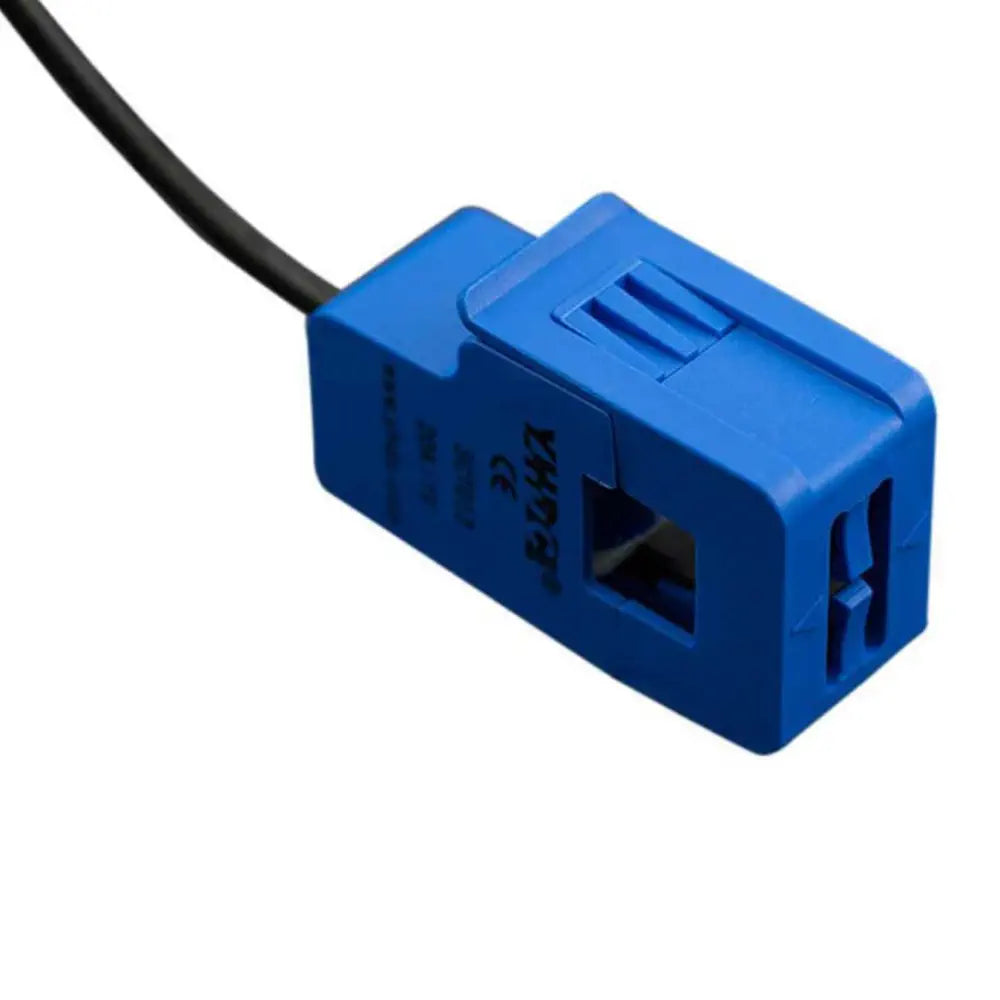

Description Measures AC current without intrusive methods Supports Gravity 3-Pin interface Analog output Use this sensor to measure AC motors, lighting equipment, air compressors or any other devices that use AC current When you want to measure AC current it is impractical and hazardous to cut in to your live wiring. The Gravity Analog AC Current Sensor is a good solution to this problem. Using induction you can measure AC current without intrusive methods. Place your AC wire inside the unit, connect the unit to the sensor board using the 3.5mm jack connector and connect the sensor board to an analog input on your microcontroller. View more What's Included 1x - Analog AC Current Sensor 1x - Open type AC transformer probe 1x - Analog Sensor Cable Links PDF File Schematic Specifications Module Operating Voltage: 3.3V - 5.5V Analog Output Voltage: 0.2V - 2.8V (DC) AC Signal Input Range: 0 - 1V (AC) Relative Error: + 3% Interface: PH2.0-3P Dimensions: 32 * 27 mm/1.26 * 1.06 inches AC Current Sensor Probe AC Measurement Range: 0 - 20A AC Signal Output: 0 - 1V AC map onto 0-20 A Non-linearity: ±3% (10% ~ 120% of the rated input current) lead length: 1.5 meters Opening and closing times: >= 1000 times Working temperature: -25℃ to +70℃ Dimensions: 13 * 13mm/ 0.51 * 0.51 inches
