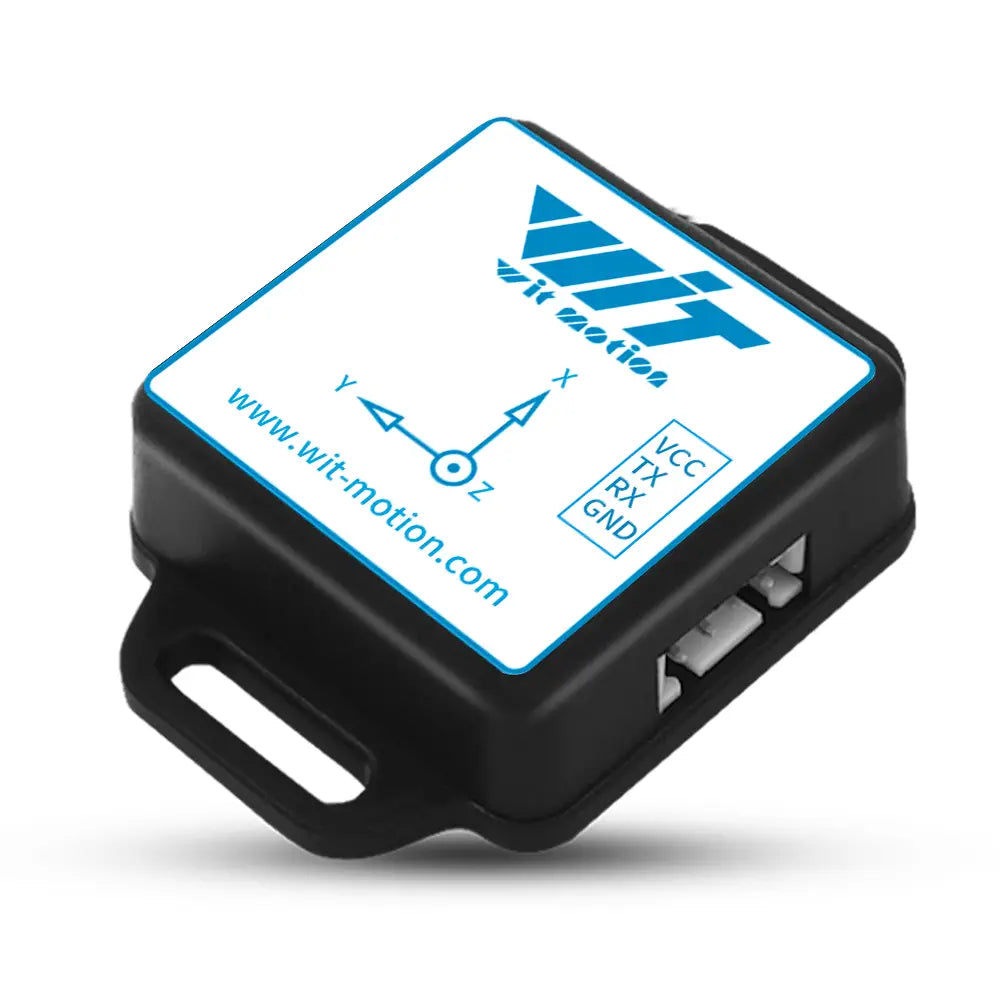

Witmotion WT901C-485 MPU9250 High-Precision 9-Axis Gyro, Accelerometer, Magnetometer & Digital Compass

Description Witmotion WT901C-485 MPU9250 High-Precision 9-Axis Gyro, Accelerometer, Magnetometer & Digital Compass Solid data output: RS485 Modbus Pitch Roll Yaw Acceleration + Angular Velocity + Angle + Magnetic Field X, Y-axis: 0.05 (static), X, Y-axis: 0.1 (dynamic). Long-term measurement Support multi-connection up to 128 units simultaneously via WITMOTION PC software or other MCU Ensures stable data output, low noise level, and increased measurement accuracy The Witmotion WT901C-485 MPU9250 High-Precision 9-Axis Gyro, Accelerometer, Magnetometer & Digital Compass is a scientific device used to measure 3-axis angle, angular velocity, acceleration, and magnetic field. It integrates a high-precision gyroscope, accelerometer, and geomagnetic field sensor, along with a high-performance microprocessor. The sensor also utilizes advanced dynamics fusion and Kalman dynamic filtering algorithms to quickly analyze the module's real-time motion posture. Thanks to WitMotion's advanced digital filtering technology, this sensor effectively reduces measurement noise and improves measurement accuracy. It features an in-built posture solver and dynamic Kalman filter algorithm, allowing it to accurately output the current posture of the product in a dynamic environment. The measurement accuracy of the X and Y axis can reach 0.05, with extremely high stability. Designed for optimal data accuracy and stability, the WitMotion WT901C-485 MPU9250 sensor surpasses traditional accelerometer sensors with its patented zero-bias automatic detection calibration algorithm and R&D dynamic fusion algorithm. View more What's Included 1x WitMotion WT901CRS485 Modbus Accelerometer Sensor 1x 4-PIN Dupont Cable 1x Welcome Guide Dimensions 51 x 36 x 15 mm Links Attached files WT901C RS485 Manual.pdf WT901C RS485 Datasheet.pdf Modbus Communication Protocol.pdf Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications Current: <40mA Voltage: 5-36V (requires a power source of 5-36V) Data output frequency: Modbus RTU (data rate based on the baud rate) Baud Rate: 4800-230400 (adjustable) Output Content: 3-axis Acceleration+Angle+Angular Velocity+Magnetic Field+Quaternion Range: Acceleration (+-6g), Gyroscope (+-2000 /s), Magnet Field (+-4900uT), Angle (X, Z-axis: +-180 , Y +-90) Resolution: Acceleration (0.005g), Gyroscope (0.61 /s), Magnet Field (16 bits) Angle Accuracy (after calibrated): X, Y-axis: 0.05 (Static), X, Y-axis: 0.1 (Dynamic) Note: The Z-axis angle will be affected by the magnetic field. It is required to calibrate and keep the sensor at least 20 cm away from objects like metal that may create magnetic field interference Bulk inquiries are welcome. The production capacity is 10,000 pcs/month. If you have any interest or need any help, please feel free to contact us
