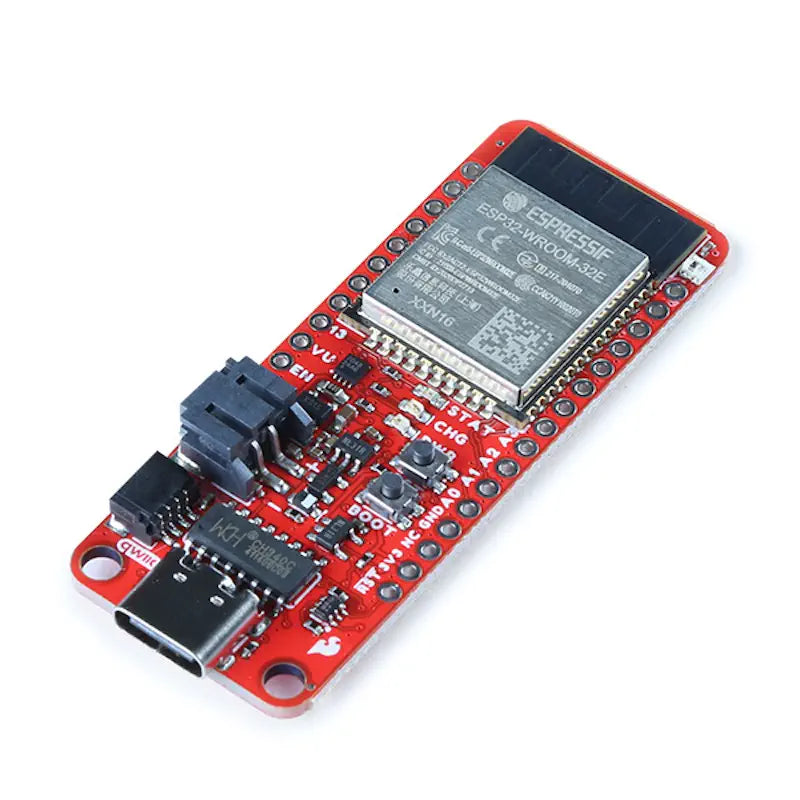

SparkFun Thing Plus - ESP32 WROOM (USB-C)

Description SparkFun Thing Plus - ESP32 WROOM w/ USB-C Feather-compatible and Qwiic Connect System enabled Enhanced with µSD card slot and USB-C connector Diverse peripherals for versatile applications 16 MB flash memory and 520 kB internal SRAM Integrated WiFi and dual-mode Bluetooth® capabilities The SparkFun Thing Plus - ESP32 WROOM (USB-C) is an excellent starting point for exploring Espressif IoT applications while maintaining the features of the original ESP32 WROOM Thing Plus. Espressifs ESP32 WROOM is a robust WiFi and Bluetooth MCU module designed for a wide range of applications. At its core lies the ESP32-D0WDQ6 chip, which is engineered to be scalable and adaptive. To ensure ease of use, the Thing Plus is made Feather-compatible and utilizes the convenient Qwiic Connect System, eliminating the need for soldering or shields when connecting it to other components. The SparkFun Thing Plus - ESP32 WROOM w/ USB-C offers several improvements over the previous ESP32 Thing Plus. These enhancements include a µSD card slot, a USB-C connector, an integrated RGB status LED, a battery fuel gauge, and two voltage regulators - a separate 700 mA current source for the board and Qwiic connector. It is worth noting that this board uses a CH340C serial-to-UART bridge, unlike previous versions. The ESP32 Thing Plus incorporates a diverse set of peripherals, such as capacitive touch sensors, an SD card interface, Ethernet, high-speed SPI, UART, I2S, and I2C. Additionally, the module features 16 MB of flash memory, 520 kB of internal SRAM, an integrated 802.11 b/g/n WiFi transceiver with dual-mode Bluetooth® capabilities, and a JST connector for LiPo battery connection. View more What's Included 1x SparkFun Thing Plus - ESP32 WROOM (USB-C) Dimensions 6.47 cm x 2.29 cm Specifications SparkFun Thing Plus - ESP32 WROOM Features ESP32-WROOM Module 21 Multifunctional GPIO Up to thirteen 12-bit ADC Channels Up to two DAC channels Up to sixteen PWM outputs Up to eight capacitive touch pins Up to three SPI Busses An available I2S Audio Output Up to two I2C Busses Up to three UARTs Thing Plus (or Feather) Form-Factor Dimensions: 2.55" x 0.9" Four Mounting Holes: 4-40 Screw compatible 28 PTH Pins USB-C Connector 2-pin JST Connector for a LiPo Battery 4-pin JST Qwiic Connector SD Card Slot MAX17048 Fuel Gauge LEDs PWR - Red Power LED CHG - Yellow battery charging indicator STAT - Blue status LED Buttons BOOT RST ESP32-WROOM General Features Operating Voltage: 2.3 to 3.6 V 2.5 µA deep sleep current 80 mA average operating current Operating Temperature: -40 to 85 °C Xtensa® Single-Core 32-bit LX6 Microprocessor (up to 240MHz) 448 KB of ROM and 520 KB SRAM 16 MB of Embedded SPI flash storage Integrated 802.11b/g/n WiFi 2.4 GHz transceiver Integrated dual-mode Bluetooth (classic and BLE) Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
