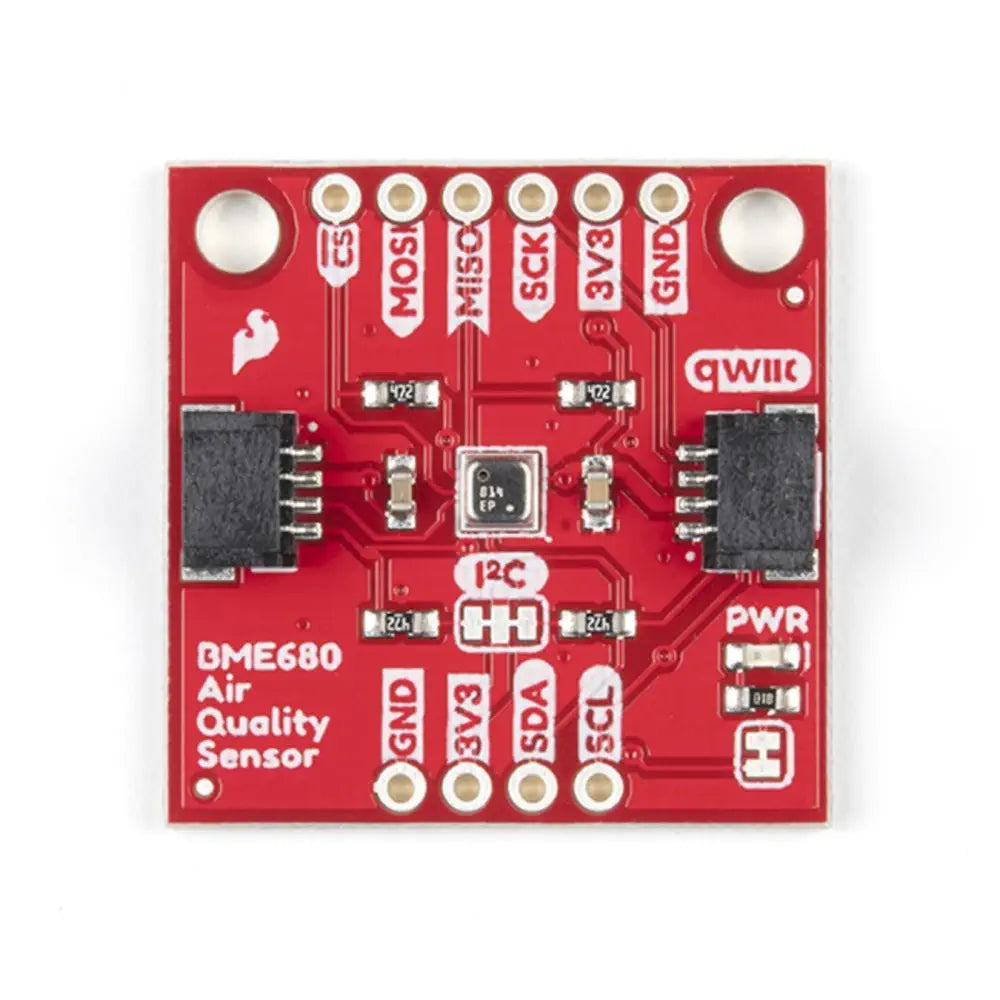

SparkFun Environmental Sensor Breakout BME680 (Qwiic)

Description SparkFun Environmental Sensor Breakout BME680 (Qwiic) Combines a gas sensor with temperature Detects a wide variety of volatile organic compounds Works as a completely standalone environmental Communicates via either I2C or SPI Doesn't need soldering The SparkFun Environmental Sensor Breakout BME680 (Qwiic) combines a gas sensor with temperature, humidity, and barometric pressure sensing for a complete environmental sensor in a single package. The BME680 can work as a completely standalone environmental sensor all in a 1 x 1 inch breakout! The sensor communicates via either I2C or SPI. The I2C pins to the Qwiic system have been broken out so no soldering is required to connect it to the rest of your system but if you would prefer, both the I2C and SPI pins are also broken out to standard 0.1 in.-spaced pins. View more What's Included 1 x SparkFun Environmental Sensor Breakout BME680 (Qwiic) Links PDF Files SparkFun Environmental Sensor Breakout BME680 (Qwiic) - Schematics SparkFun Environmental Sensor Breakout BME680 (Qwiic) - Datasheet Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications Uses I2C interface (Qwiic-enabled) I2C Addresses: 0x77 (Default) or 0x76 2 x Qwiic Connectors Operating voltage range 1.71 - 3.6 V Typically 3.3V if using the Qwiic cable Relative humidity Operating range: 0 to 100 % Absolute Accuracy: ±3 %RH Resolution: ±0.008 %RH Temperature Operating range: -40 to +85 °C Absolute Accuracy: ±0.5 to ±1.0 °C Resolution: 0.01 °C Pressure Operating range: 300 hPa - 1100 hPa Relative accuracy: ±12 Pa (25 to 40 °C at constant RH) Absolute accuracy: ±60 Pa (0 to 65 °C) Resolution: 0.18 PA, highest oversampling Gas Resolution of gas sensor resistance: 0.05% to 0.11% Typical current consumption (varies based on mode and active sensor) 2.1 µA to 18 mA 0.15 µA (sleep mode)
