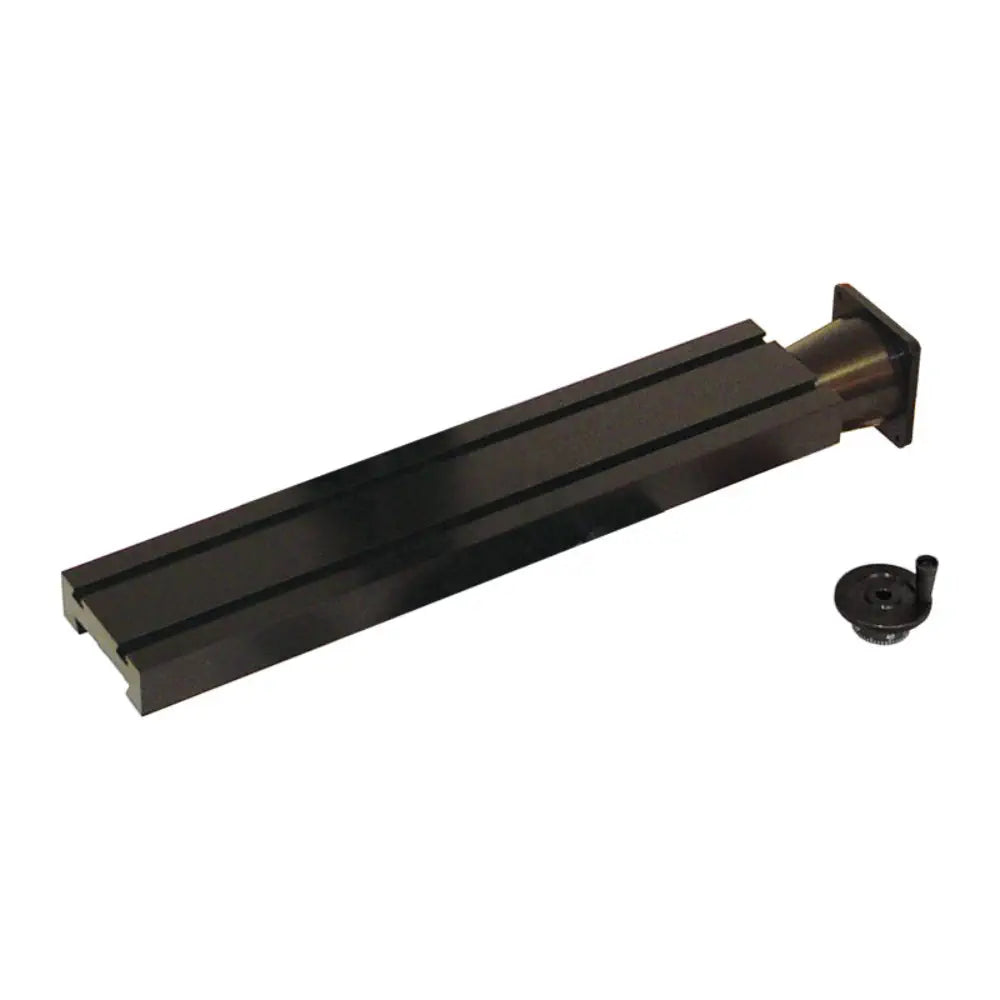

Sherline 13" Lathe Crosslide Assembly – CNC Ready – 4088 (Inch)
www.robotshop.com

Sherline 13" Lathe Crosslide Assembly – CNC Ready – 4088 (Inch)

$212.28
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

Description Sherline 13" Lathe Crosslide Assembly – CNC Ready – 4088 (Inch) Transforms lathe to Chucker or gang-tooling Accommodates multiple gang-tooling posts Requires headstock riser, incompatible with tailstock CNC-ready with leadscrew and stepper mount Ideal for specific CNC applications The Sherline 13" Lathe Crosslide Assembly – CNC Ready – 4088 (Inch) is designed for those seeking to transform their Sherline lathe into a Chucker Lathe or a gang-tooling lathe. This crosslide is notably thicker than the standard model, measuring .870 inches, which necessitates the use of a headstock riser plate to align tooling with the headstock. This modification allows the crosslide to accommodate multiple gang-tooling tool posts, enhancing its utility for specialized machining tasks. However, the increased thickness and the requirement for a riser plate mean that the tailstock cannot be used in conjunction with this setup, as there is no riser available for the tailstock. Consequently, parts cannot be turned between centers, and certain accessories, such as the thread-cutting attachment, are incompatible with this crosslide. The crosslide is CNC-ready, featuring a CNC leadscrew, a standard 1-5/8 inch handwheel, and a stepper motor mount. It is equipped with factory-installed mounts suitable for 23-frame size stepper motors, and dual-shaft stepper motors are recommended for those who wish to retain manual control capabilities. This assembly is ideal for users looking to expand the functionality of their lathe for specific CNC applications. View more What's Included 1x CNC leadscrew 1x Standard 1-5/8″ handwheel 1x Stepper motor mount Sherline 13" Lathe Crosslide Assembly – CNC Ready – 4088 Dimensions Thickness: 0.870 inches Specifications Converts Sherline lathe into a Chucker Lathe or gang-tooling lathe Holds multiple gang-tooling tool posts Requires headstock riser plate (P/N 1295) for tooling on center Not compatible with tailstock when using riser plate CNC-ready with CNC leadscrew, standard 1-5/8″ handwheel, and stepper motor mount Factory-installed stepper motor mounts for 23-frame size stepper motors Dual-shaft stepper motors recommended for manual control
