Sherline 13" Lathe Crosslide Assembly – Manual 4088 (Metric)

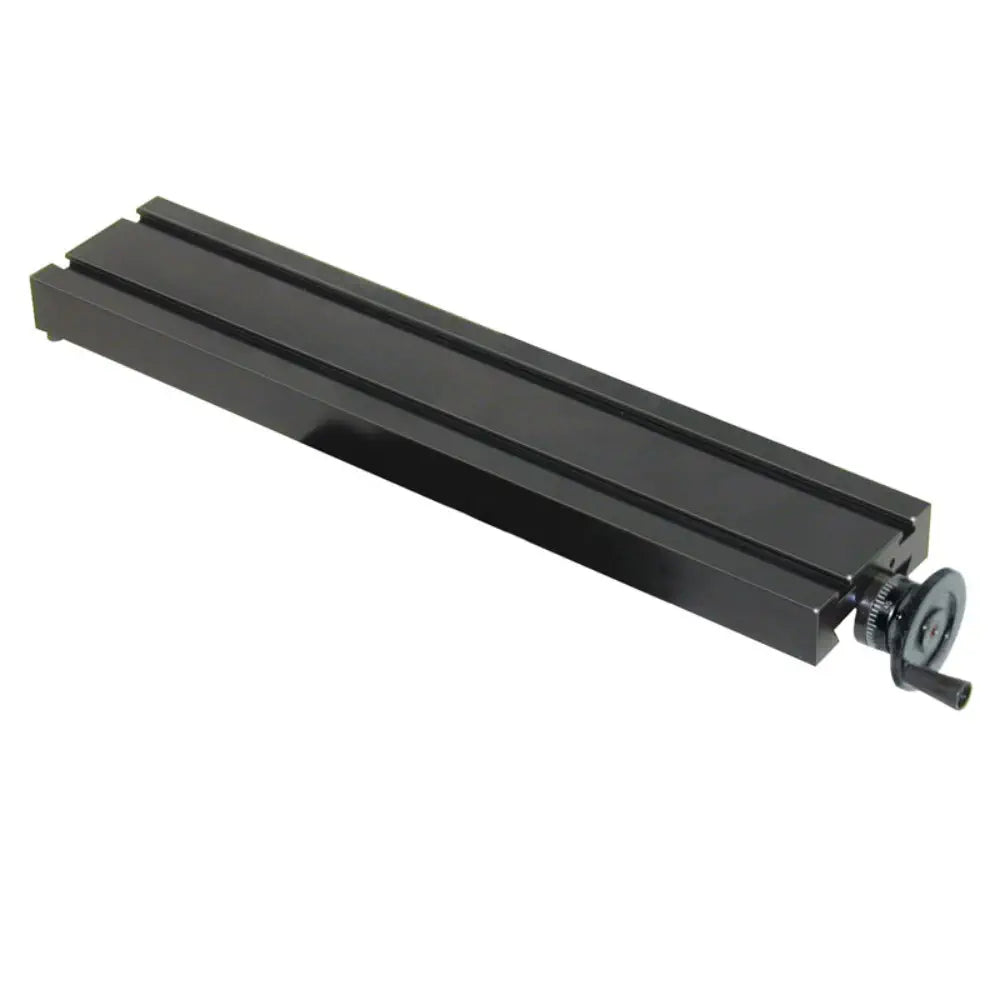

Description Sherline 13" Lathe Crosslide Assembly – Manual 4088 (Metric) Replacement part for Sherline Measures 0.870" thick Includes leadscrew and handwheel The Sherline 13" Lathe Crosslide Assembly – Manual 4088 (Metric) is designed for individuals seeking to transform their Sherline lathe into a Chucker Lathe or a gang-tooling lathe. This crosslide is notably thicker than the standard model, measuring .870 inches in thickness, compared to the standard 6-inch crosslide which is .625 inches thick. This increased thickness necessitates the use of a headstock riser plate to align the tooling with the headstock. The 13-inch crosslide is capable of accommodating multiple gang-tooling tool posts, making it ideal for specialized machining tasks. However, it is not advisable to use this crosslide as a replacement for standard lathe operations. The additional thickness of the crosslide means that when used in conjunction with a riser plate, the tailstock becomes unusable, as there is no riser available for the tailstock. Consequently, parts cannot be turned between centers, and certain accessories, such as the thread-cutting attachment, are incompatible with this setup. Included with the 13-inch lathe crosslide is a leadscrew and a standard 1-5/8 inch handwheel, providing the necessary components for its operation. Note: Exercise caution as the tailstock cannot be used with this crosslide, and some accessories may not be compatible. View more What's Included 1x Leadscrew 1x Standard 1-5/8″ handwheel Dimensions Thickness: 22.10 mm (0.870") Specifications Not recommended for replacing your lathe crosslide for regular use Requires a headstock riser plate (P/N 1295) to align tooling with the headstock center Using the 13″ crosslide with a riser plate prevents the use of the tailstock Some accessories, like the thread-cutting attachment, are incompatible with this thicker crosslide Includes a leadscrew and a standard 1-5/8″ handwheel
