Pololu RC Switch w/ Relay (Partial Kit)

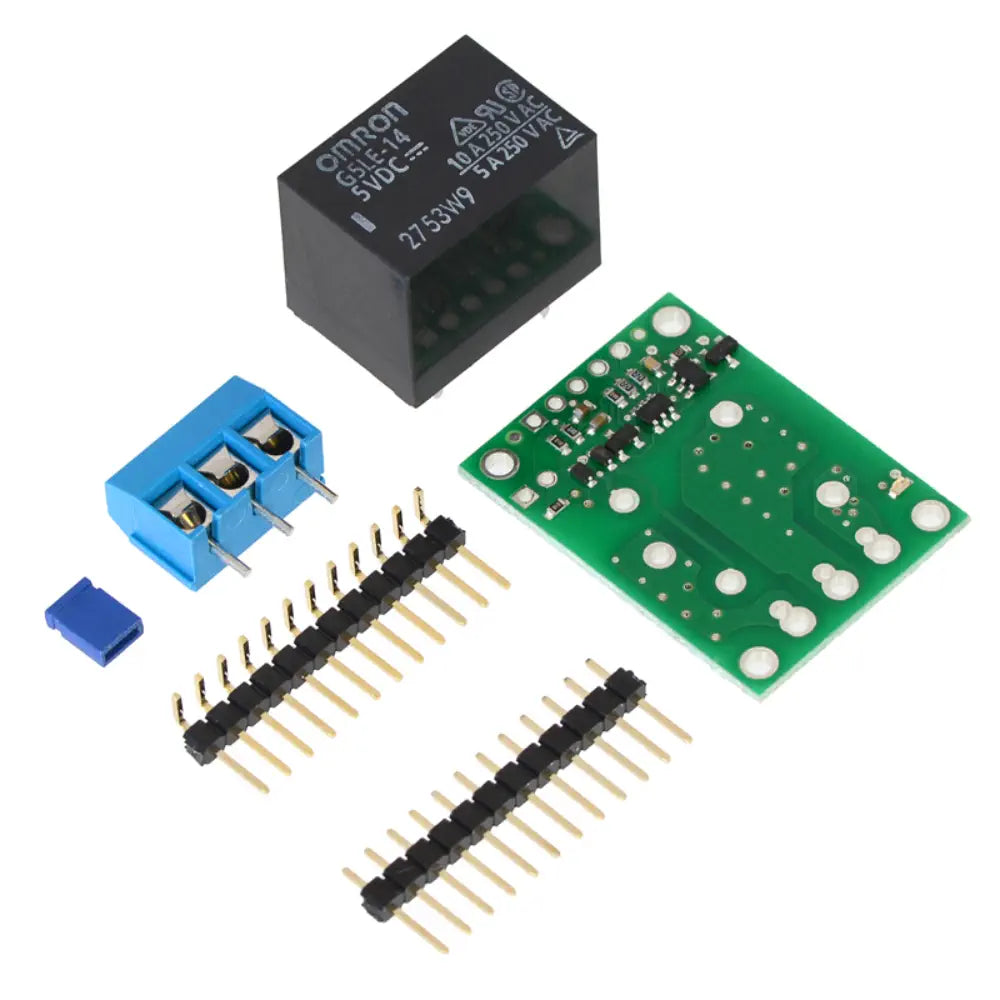

Description Pololu RC Switch w/ Relay (Partial Kit) Facilitates control of large isolated loads Features configurable activation threshold Includes safe-start to minimize activations Offers flexibility for compact installations Requires soldering for assembly The Pololu RC Switch w/ Relay (Partial Kit) facilitates the control of large, electrically isolated loads in radio control systems. It features a configurable activation threshold and direction, with a safe-start function to minimize unexpected activations. This partial kit includes a printed circuit board, a 5V Omron relay, terminal block, and male headers, requiring soldering for through-hole components. The switch measures incoming RC signals to control the relay, suitable for applications like activating lights or motors. It offers flexibility in connections, allowing for compact installations. Note: Exercise caution when soldering to avoid incorrect assembly, and avoid using with high voltages unless qualified. View more What's Included 1x 5V Omron relay 1x 0.1″ 12-pin male header 1x 0.1″ 12-pin right-angle male header 1x 3-pin terminal block 1x Shorting block Pololu RC Switch w/ Relay (Partial Kit) Specifications Single-pole, double-throw (SPDT) power relay Measures incoming RC signals User-configurable threshold with ±64 µs of hysteresis Default threshold approximately 1700 μs Safe-start feature Recommended power source: 4- or 5-cell NiMH or NiCD battery pack Omron G5LE-14-DC5 relay rated for up to 10 A
