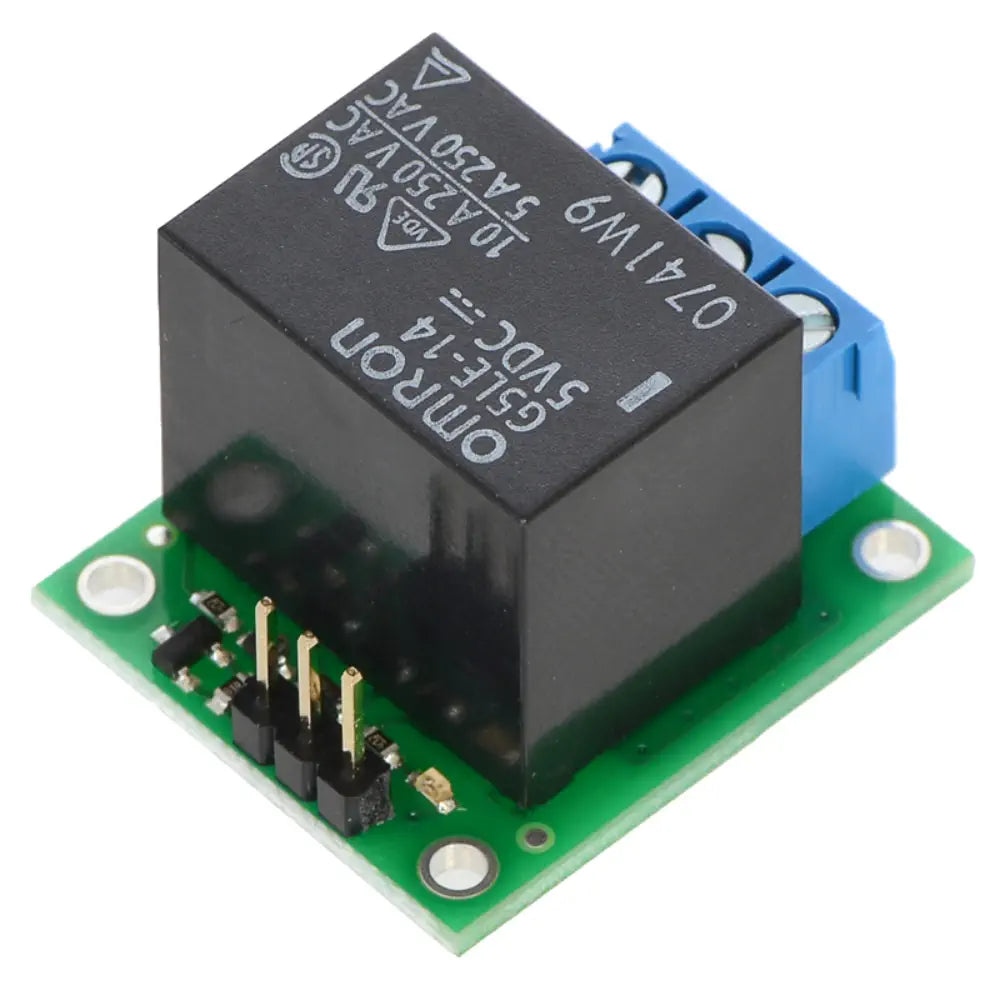

Pololu Basic SPDT Relay Carrier w/ 5VDC Relay (Partial Kit)

Description Pololu Basic SPDT Relay Carrier w/ 5VDC Relay (Partial Kit) Facilitates low-voltage switch control Includes Omron G5LE-14-DC5 relay Fits standard solderless breadboards Features LEDs for coil actuation Compact design with mounting holes The Pololu Basic SPDT Relay Carrier w/ 5VDC Relay (Partial Kit) facilitates the control of a single-pole, double-throw switch using low-voltage, low-current signals. It includes a basic carrier PCB with an Omron G5LE-14-DC5 5 V relay, terminal blocks, and male headers. The board is designed for compatibility with standard solderless breadboards and female servo cable connectors. The relay coil is activated by a digital high control signal, and the board features mounting holes for secure installation. Note: This product is not certified for high-voltage safety standards and should be used with caution above 30 V. View more What's Included 1x Basic carrier PCB 1x Omron G5LE-14-DC5 5 V relay 5.0 mm terminal blocks 0.1" male headers in straight and right-angle versions Dimensions 1.15 x 1 inches Links PDF File Pololu Basic SPDT Relay Carrier w/ 5VDC Relay (Partial Kit) - Schematic Diagram Specifications Compact layout Two LEDs indicate coil actuation Zener diode ensures fast current decay on the relay coil Electrical routing clearance rules specified on relay switch nodes
