Pololu Basic SPDT Relay Carrier w/ 12VDC Relay (Partial Kit)

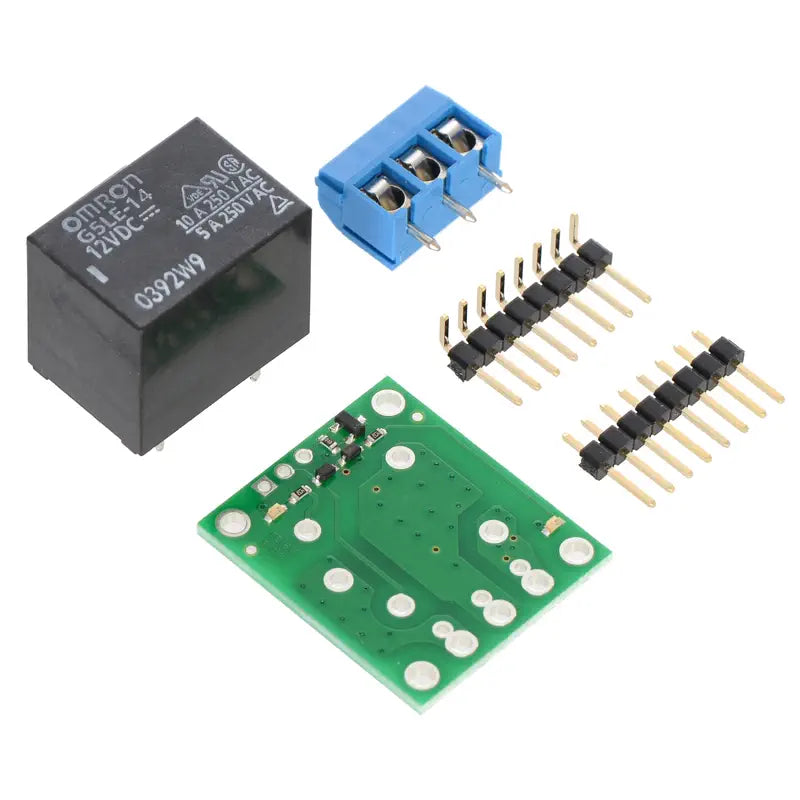

Description Pololu Basic SPDT Relay Carrier w/ 12VDC Relay (Partial Kit) Facilitates low-voltage control Includes pre-assembled components Offers compact 1.15 x 1 inch design Indicates coil actuation with LEDs Ensures fast current decay with Zener diode The Pololu Basic SPDT Relay Carrier w/ 12VDC Relay (Partial Kit) facilitates the control of a single-pole, double-throw switch using low-voltage, low-current signals. It includes a basic carrier PCB, an Omron G5LE-14-DC12 12 V relay, terminal blocks, and male headers. The surface-mount components are pre-assembled, while through-hole components require installation. The board is designed for compatibility with standard solderless breadboards and perfboards, offering flexibility in application. Advantages include a compact layout, coil actuation LEDs, and a Zener diode for efficient current decay. View more What's Included 1x Basic carrier PCB 1x Omron G5LE-14-DC12 12 V relay 5.0 mm terminal blocks 0.1" male headers in straight and right-angle versions Dimensions 1.15 x 1 inches Links PDF File Pololu Basic SPDT Relay Carrier w/ 12VDC Relay (Partial Kit) - Schematic Diagram Specifications Compact layout Two LEDs indicate coil actuation Zener diode ensures fast current decay on relay coil Electrical routing clearance rules specified on relay switch nodes
