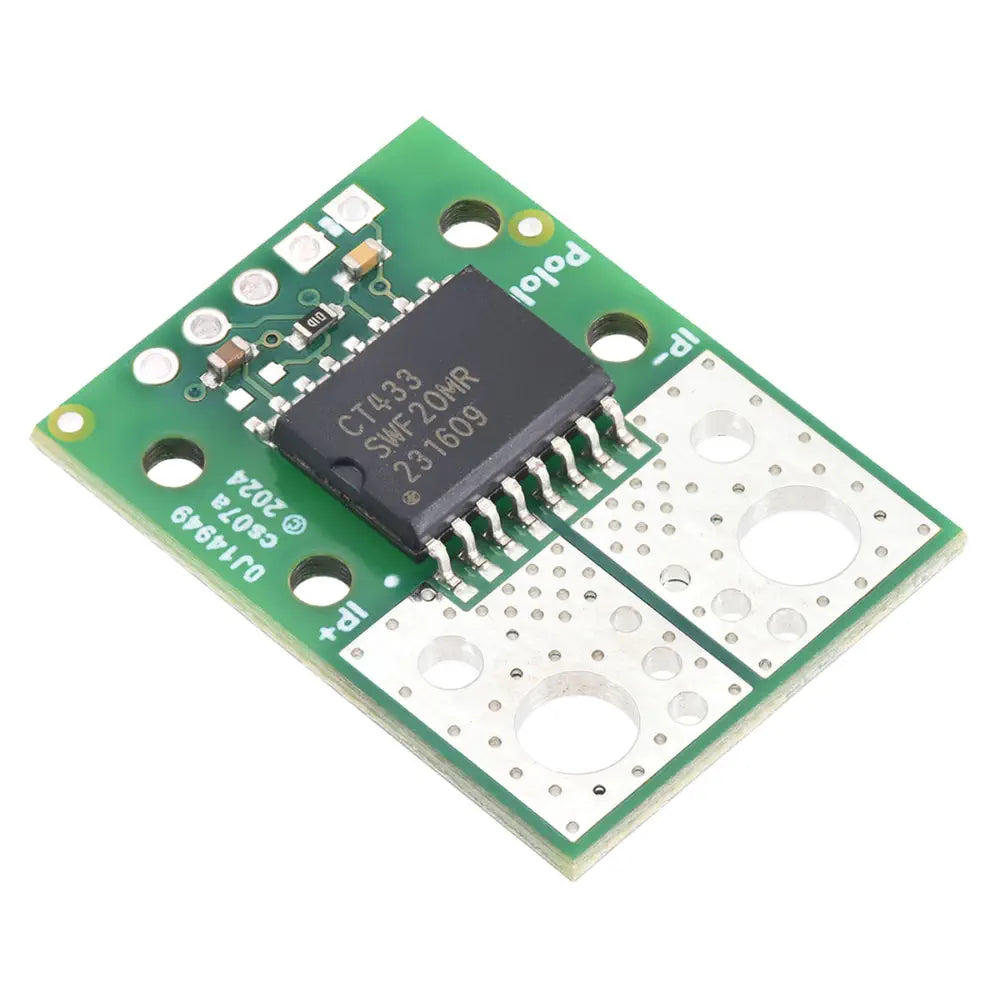

Pololu CT433-HSWF20MR TMR Current Sensor Compact Carrier -20a to +20A, 3.3V

Description Pololu CT433-HSWF20MR TMR Current Sensor Compact Carrier -20a to +20A, 3.3V Utilizes XtremeSense™ TMR technology for high accuracy Supports high dV/dt applications with compact design Operates effectively from -40°C to 125°C Provides 1 MHz bandwidth for AC/DC measurements Features 300 ns typical response time The Pololu CT433-HSWF20MR TMR Current Sensor Compact Carrier -20a to +20A, 3.3V is a compact, electrically isolated current sensor optimized for high dV/dt applications. It utilizes Allegro’s XtremeSense™ TMR technology to provide high accuracy and bandwidth for AC or DC current measurements. The sensor features a 1 MHz bandwidth and a typical response time of 300 ns, with an analog output voltage that is not ratiometric. It is designed for bidirectional input currents ranging from -20 A to +20 A and operates within a temperature range of -40°C to 125°C. Note: This product is intended for use below 30 V, and exceeding temperature or current limits can cause permanent damage. View more What's Included 1x Pololu CT433-HSWF20MR TMR Current Sensor Compact Carrier -20a to +20A, 3.3V Dimensions 0.8 x 1 inches Links PDF File Pololu CT433-HSWF20MR TMR Current Sensor Compact Carrier -20a to +20A, 3.3V - Datasheet Specifications Bidirectional input current range: -20 A to +20 A Supply voltage range: 3.0 V to 3.6 V Sensitivity: 50 mV/A Zero point: 1.65 V 2-layer PCB High-bandwidth 1 MHz analog output Typical response time: 300 ns Output is not ratiometric Operating temperature range: -40°C to 125°C Optional overcurrent fault output Common-mode field rejection
