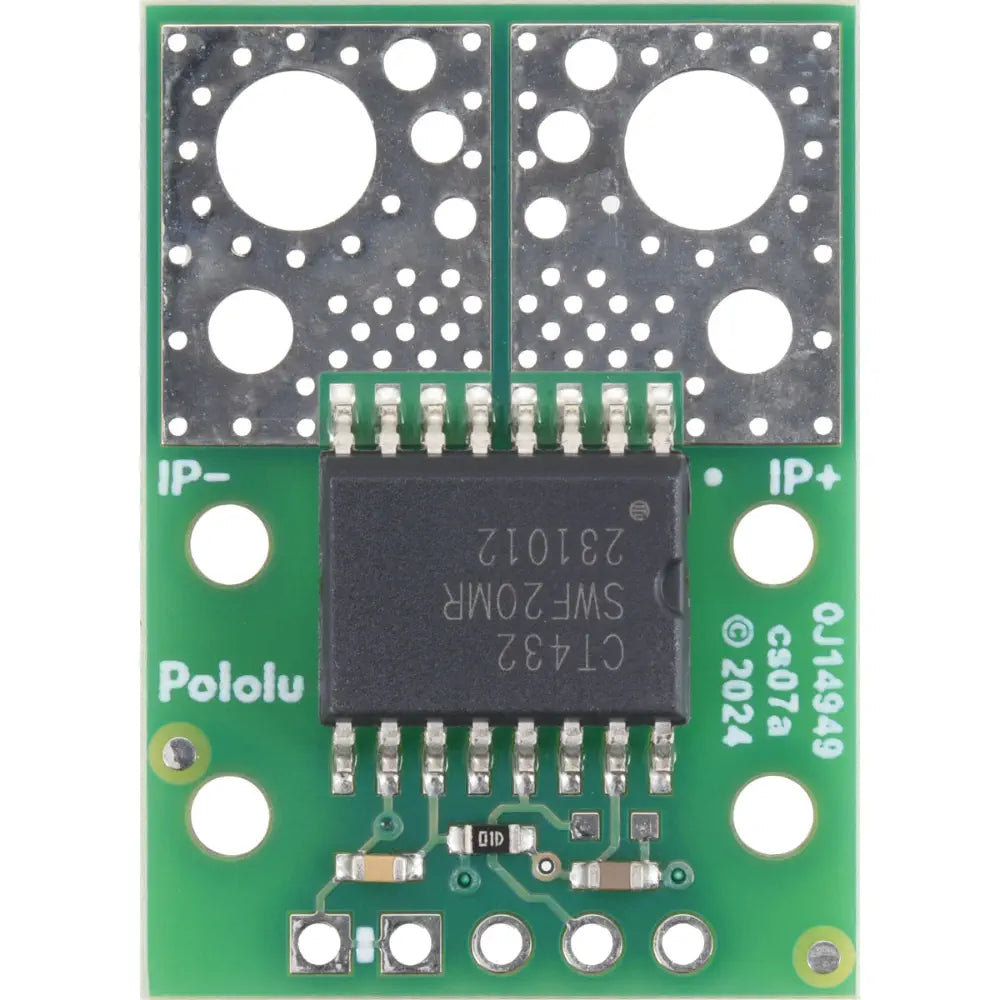

Pololu CT432-HSWF20MR TMR Current Sensor Compact Carrier -20a to +20A, 5V

Description Pololu CT432-HSWF20MR TMR Current Sensor Compact Carrier -20a to +20A, 5V Provides high accuracy with XtremeSense™ TMR technology Measures bidirectional currents from -20A to +20A Ensures stability with non-ratiometric output Integrates with 0.1"-pitch header pins Operates in -40°C to 125°C temperature range The Pololu CT432-HSWF20MR TMR Current Sensor Compact Carrier -20a to +20A, 5V is a compact, electrically isolated current sensor optimized for high dV/dt applications. It utilizes Allegro’s XtremeSense™ TMR technology to provide high accuracy and bandwidth for current measurements. The sensor is designed for bidirectional input currents ranging from -20 A to +20 A and operates at a nominal 5 V supply voltage. It features a high-bandwidth 1 MHz analog output and a typical response time of 300 ns, with an output that is not ratiometric, ensuring stability against noisy supplies. The sensor is suitable for applications requiring electrical isolation and can be integrated into various current paths. Note: This product is intended for use below 30 V, and exceeding temperature or current limits can cause permanent damage. View more What's Included 1x Pololu CT432-HSWF20MR TMR Current Sensor Compact Carrier -20a to +20A, 5V Dimensions 0.8 x 1 inches Links PDF File Pololu CT432-HSWF20MR TMR Current Sensor Compact Carrier -20a to +20A, 5V - Datasheet Specifications Bidirectional input current range: -20 A to +20 A Supply voltage: 4.75 V to 5 V Sensitivity: 100 mV/A Zero point: 2.5 V Two-layer PCB Primary current path resistance: 1 mΩ High-bandwidth 1 MHz analog output Typical response time: 300 ns Output is not ratiometric Optional overcurrent fault output Operating temperature range: -40°C to 125°C Compatible with 0.1″-pitch header pins and standard solderless breadboards
