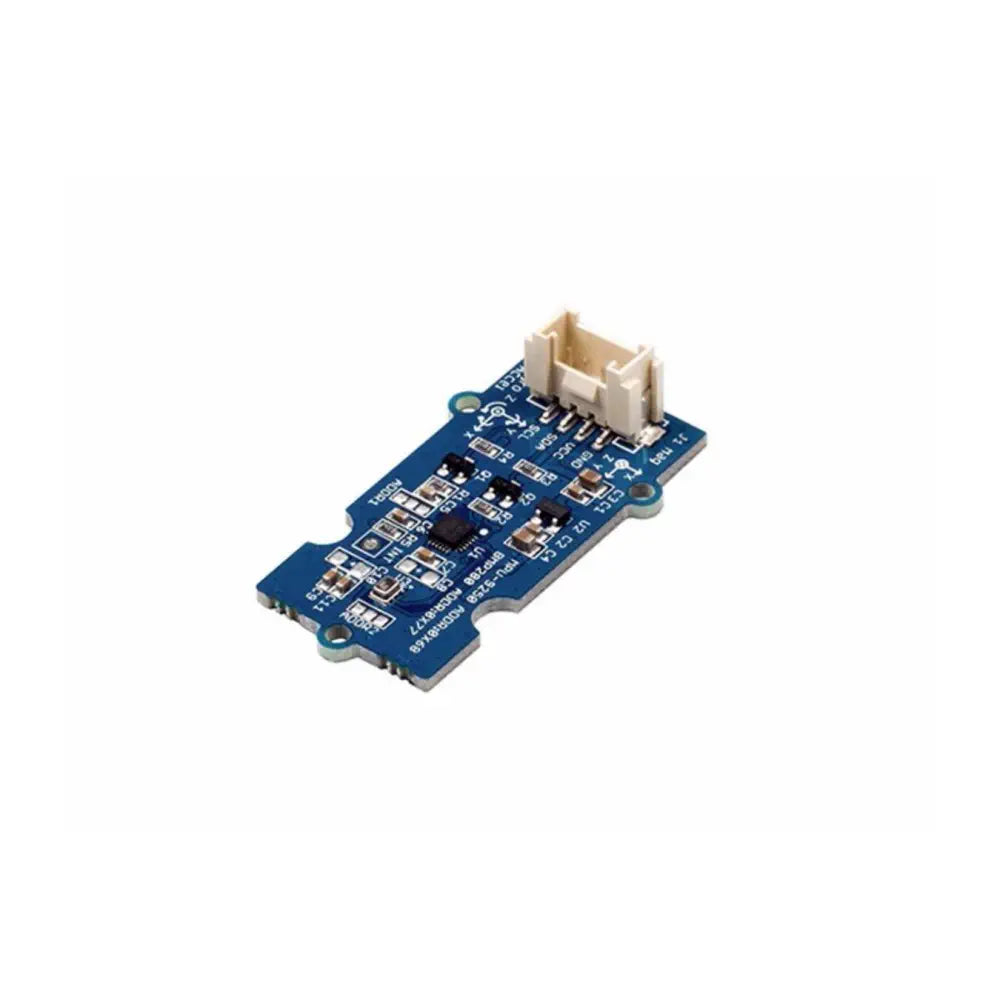

Grove IMU 10DOF v2.0

Description Most compatible 9-axis motion tracking device 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer and a Digital Motion Processor (DMP) User-programmable full-scale range (digital output) High accuracy for temp/pressure measurement Ideal for motion tracking and environment monitoring The Grove IMU 10DOF v2.0 is based on MPU-9250 and BMP280.MPU-9250 is still the most compatible 9-aixs motion tracking device which combines a 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer and a Digital Motion Processor (DMP) in a small package. The main change from Grove IMU 10DOF V1.0 is that this one is housed in an extremely compact package that is 65% smaller than BMP180. Not just the size, the power consumption is even lower to be as low as 2.74uA@1Hz. View more Dimensions Size: 20 x 40mm Specifications Digital-output X-, Y-, and Z-Axis angular rate sensors (gyroscopes) with a user-programmable full-scale range of ±250, ±500, ±1000, and ±2000°/sec Digital-output 3-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g Digital-output magnetometer with a full scale range of ±4800uT Temperature measurement with ±1.0°C accuracy Barometric pressure measurement range 300 - 1100 hPa with ±1.0 hPa accuracy Input Voltage: 5V/3.3V Working Current: 6mA Working Temperature：-40 – 85℃ Weight: 3g Programmable interrupt
