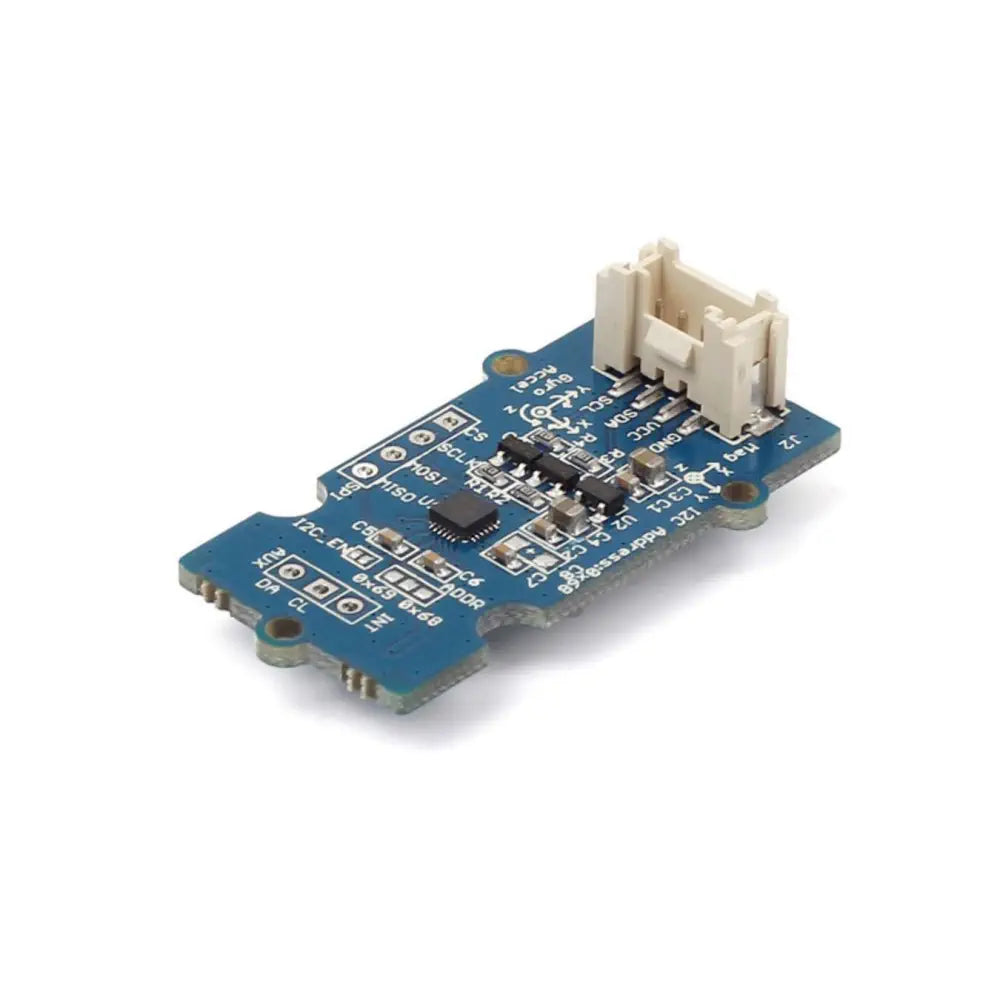

Grove - 9DoF ±2000°/sec ±16g IMU

Description Ultra-low power, low voltage Wide Detecting Range Self-test function Internal Digital Motion Processing (DMP) engine supports advanced MotionProcessing   The Grove - 9DoF ±2000°/sec ±16g IMU is a high performance 9-axis motion tracking module,which is base on MPU-9250.This module features three 16-bit ADC for digitizing the gyroscope outputs and three 16-bit ADCs for digitizing the accelerometer outputs and three 16-bit ADCs for digitizing the magnetometer outputs. Low power, low cost, and high performance make it suitable for consumer electronics equipment including smartphones, tablets and wearable sensors. View more What's Included IMU 9DOF Sensor v2.0 x 1 26AWG Grove Cable x 1 Dimensions 40mm x 20mm Links ZIP File Documentation Specifications Working Voltage: 5V Digital-output 3-Axis angular rate sensors (gyroscopes) with a user-programmable full-scale range of ±250, ±500, ±1000, and ±2000°/sec Digital-output 3-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g Digital-output 3-Axis accelerometer with a full scale measurement range is ±4800μT Low Power Control Mode: IIC Operating Temperature:-40 ~ +85°C
