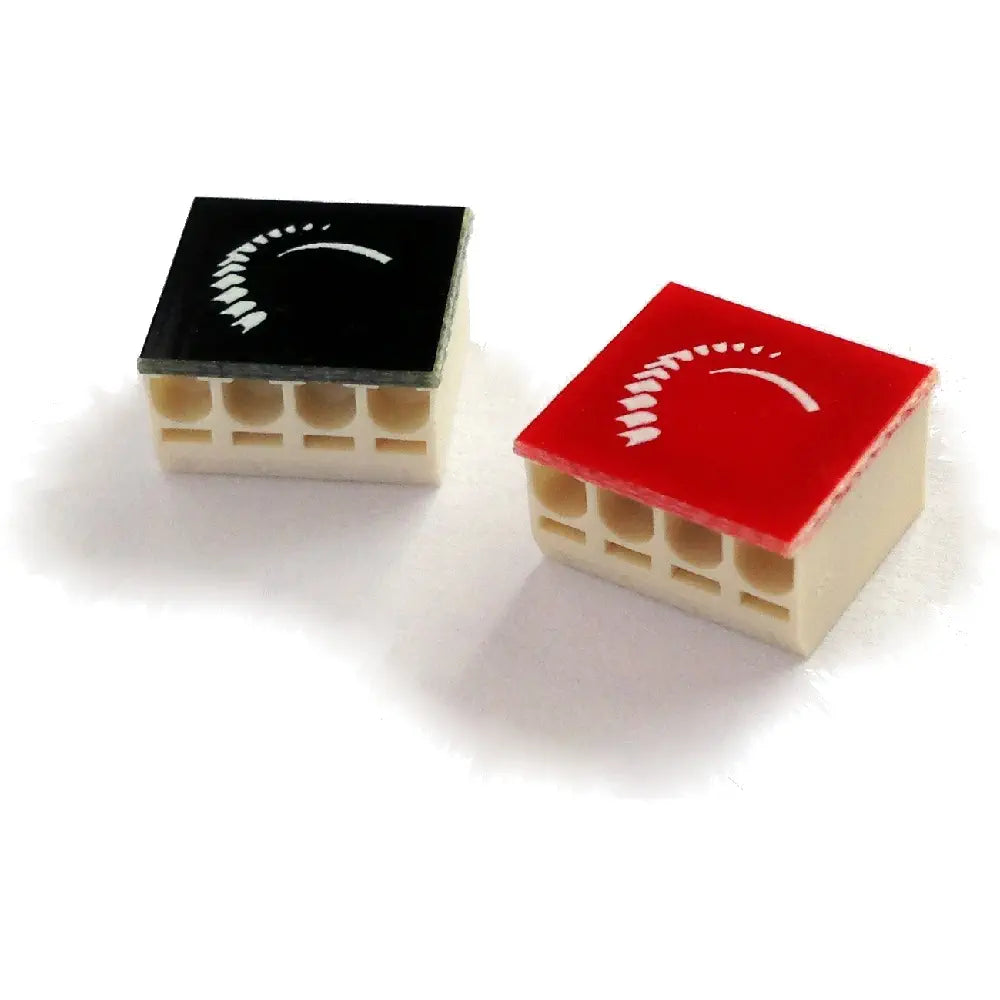

FingerTech Mini Terminal Block (Pair)

Description FingerTech Mini Terminal Block (Pair) Connects up to four wires easily Includes red and black blocks Supports 6A continuous, 30A burst Made from durable glass-filled nylon Works with 18-24 gauge wires The FingerTech Mini Terminal Block (Pair) offers a practical solution for connecting wires without soldering. These push-wire terminal blocks allow for easy connection and disconnection of up to four wires at a common point. The set includes one red and one black terminal block, designed for positive and negative connections respectively. Constructed from durable glass-filled nylon, these blocks are suitable for 18-24 gauge wires, accommodating both solid and stranded types. They support a continuous current of 6A, with a maximum burst current of 30A. View more What's Included 1x FingerTech Mini Terminal Block (Pair) 1x Red push-wire 4-terminal block 1x Black push-wire 4-terminal block Dimensions 10.6 x 9.8 x 5.8 mm (0.42 x 0.39 x 0.23") Specifications Material: Glass-filled nylon with 0.20mm Beryllium Copper retainer tabs Weight (each): 0.7 grams (0.025 oz) Accepts wire size: 18-24 gauge solid or stranded wire (up to 1mm diameter). Larger wires can be used by trimming strands Continuous current: 6A. Maximum current: 30A burst Installation: Strip insulation back 4-5mm (0.15-0.2 in). Twist stranded wires before insertion. Tinning with solder is recommended. Push wire into one of four holes until stop is reached. To release a wire, push a thin flat tool into the slot above the wire
