FingerTech Mini Terminal Block (2pk)
www.robotshop.com

FingerTech Mini Terminal Block (2pk)

$7.64
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

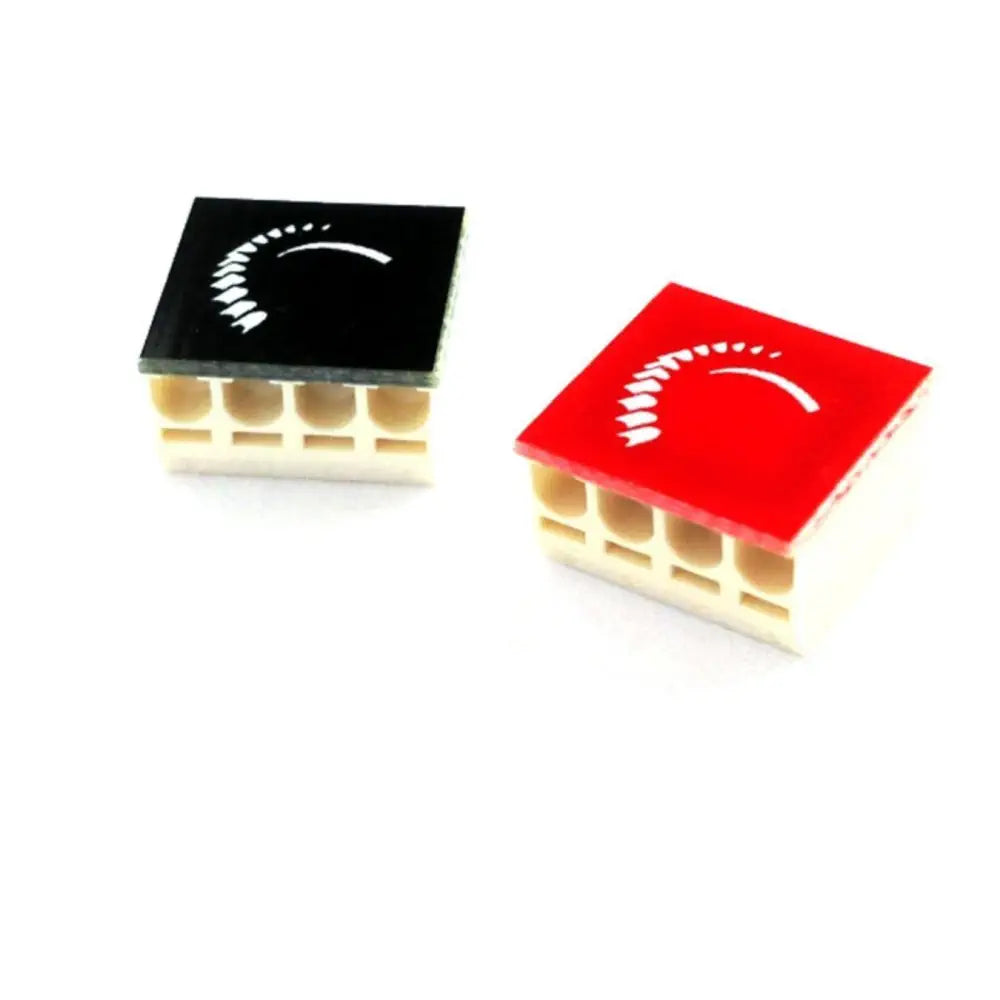

Description Pack of two FingerTech Mini Terminal Blocks Easily connect and disconnect up to four wires to a common connection point Includes one red and one black terminal block (for + and - connections) Accepted wire size: 18-24 gauge solid or stranded wire Continuous Current: 6A View more Dimensions 10.6 x 9.8 x 5.8mm (0.42 x 0.39 x 0.23in) Links PDF File FingerTech Mini Terminal Block (2pk) Specifications Includes one red and one black push-wire 4-terminal block. Material: Glass-filled nylon, 0.20m Beryllium Copper retainer tabs Weight (each): 0.7grams (0.025oz) Accepts wire size: 18-24 gauge solid or stranded wire (larger wires can be used by trimming away enough strands to fit) Continuous Current: 6A (forever).  For robots, usable continuous current is 30A
