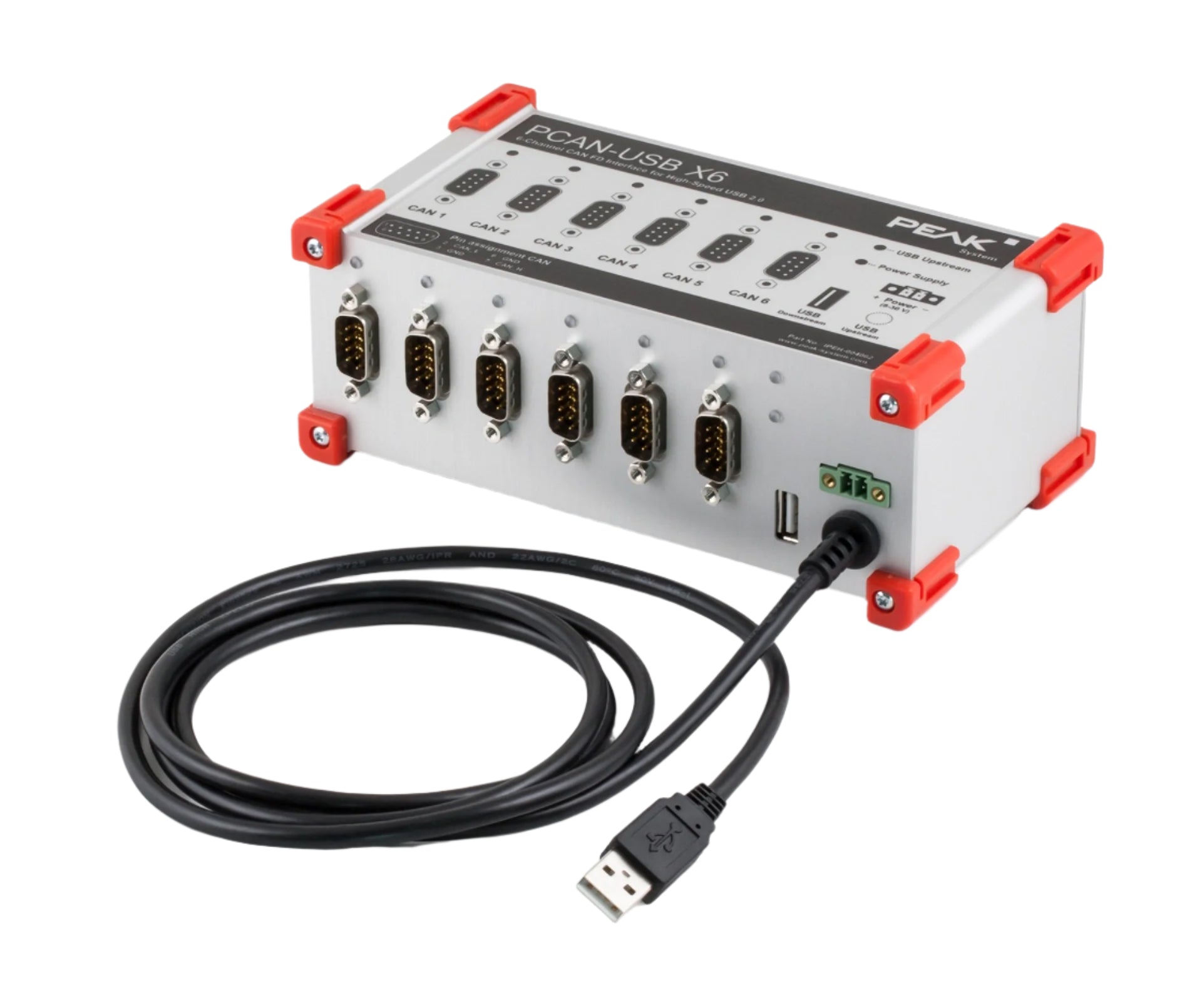

PCAN-USB X6 Adapter

Enables the connection of CAN FD and classic CAN networks to a computer via a single USB interface. PCAN-USB X6 is delivered in a robust aluminum housing and available with either SUB-D9 style or M12 connectors for each CAN channel this multi-channel CAN adapter is suitable for use in harsh environments. The PCAN-USB package includes device drivers for Windows® 11 (64-bit) and 10 (32/64-bit), the PCAN-Basic API, and the PCAN-View CAN monitor software. Linux drivers are also available. For customers needing more sophisticated CAN Analyzing software we have PCAN-Explorer 6. Features Tech Specs Documents Downloads Adapter for High-speed USB 2.0 (compatible to USB 1.1 and USB 3.0) 6 High-speed CAN channels with exchangeable NXP TJA1044GT transceiver modules. Alternative transceivers with galvanic isolation up to 300 V on request Complies with CAN specifications 2.0 A/B and FD CAN FD support for ISO and Non-ISO standards switchable CAN FD bit rates f
