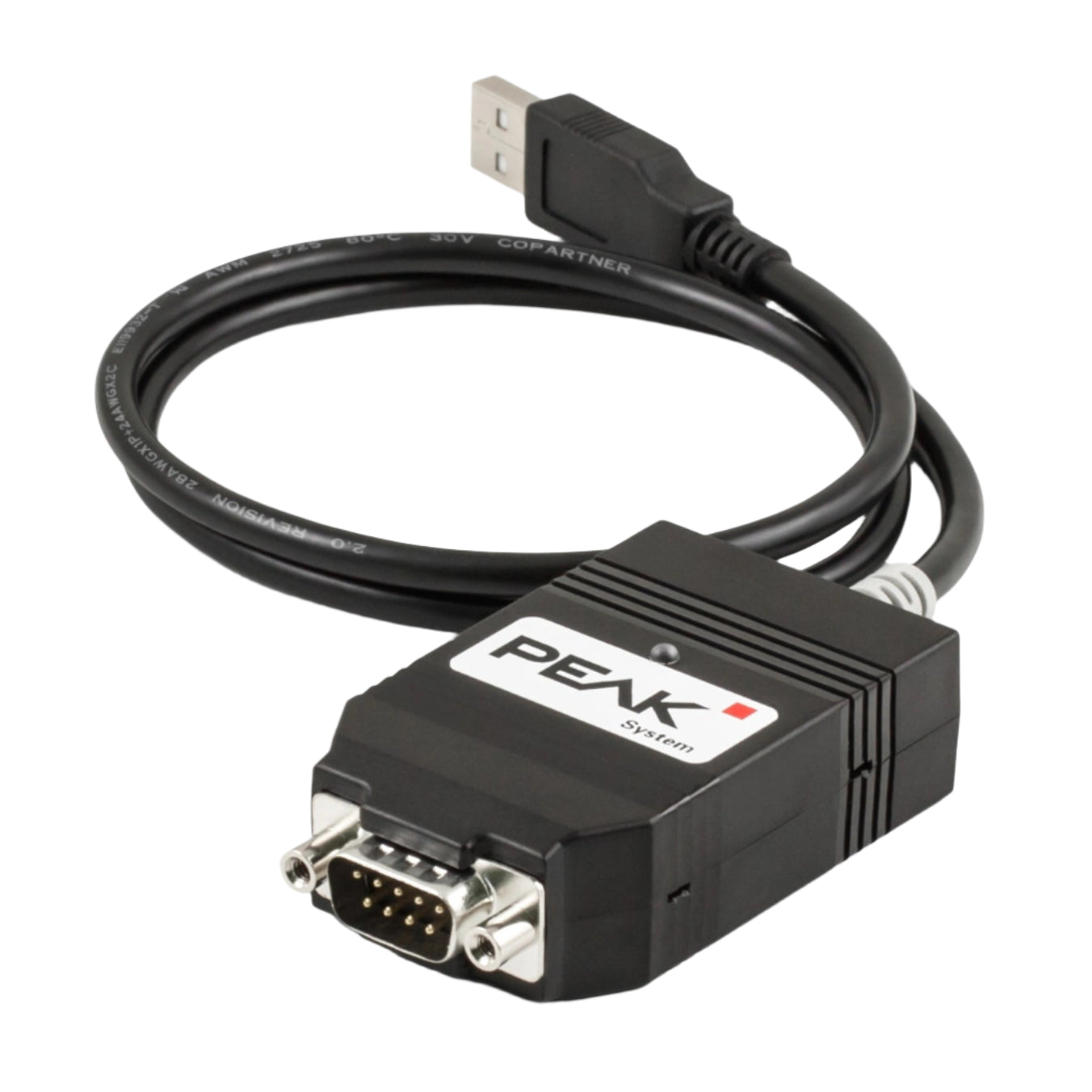

PCAN-USB FD Adapter

Connect CAN FD and classic CAN networks to a computer via USB. The simple handling and its compact plastic casing make the adapter suitable for mobile applications. This CAN interface device features galvanic isolation of up to 500 Volts which decouples the PC side from the CAN bus. Also available in galvanically isolated and non-isolated classic CAN versions. The PCAN-USB package includes device drivers for Windows® 11 (64-bit) and 10 (32/64-bit), the PCAN-Basic API, and the PCAN-View CAN monitor software. (Linux drivers are also available.) For customers needing more sophisticated CAN Analyzing software we have PCAN-Explorer 6. Features Tech Specs Documents Downloads   Adapter for High-speed USB 2.0 (compatible to USB 1.1 and USB 3.0) Complies with CAN specifications 2.0 A/B and FD 1.0 CAN FD bit rates for the data field (64 bytes max.) from 40 kbit/s up to 12 Mbit/s CAN bit rates from 40 kbit/s up to 1 Mbit/s Time stamp resolution 1 μs CAN b
