Telex SAP612 Source assignment panel

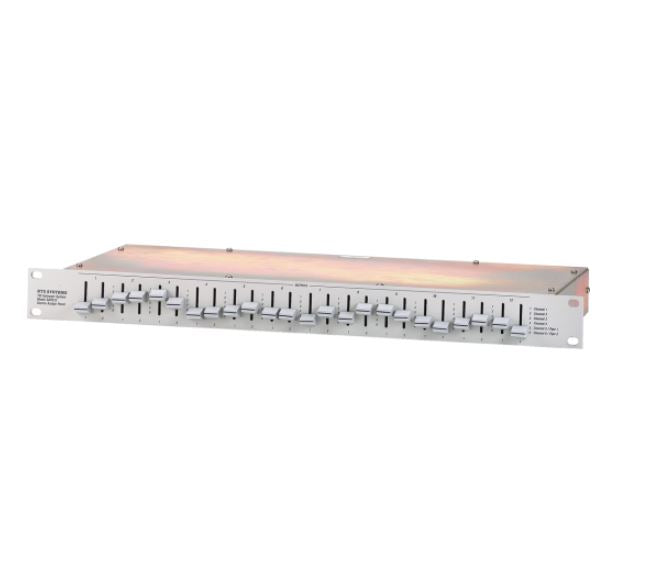

Telex SAP612 Source assignment panel Source assignment panel (1RU). Transforms a basic two bus intercom system into a 6 bus system via convenient matrix slide switches. Provides six input channels and 12 two-channel TW user station strings. I/O provided via two ¼", three 3 pin XLR female and twelve 3-pin XLR male connectors. Contains XLR jacks for RTS power supply. Features Anyone (1) of the six (6) intercom channels (inputchannels) or two (2) program channels can beassigned to any one (1) of the 12 outputs; each outputconsists of two (2) separate feeds from the SAP-612. Output connections can be made directly to a singleuser station or a group of user stations. Three-pin XLR-type male connectors allow for standardintercom usage. Multiple stations can interconnect vialoop-thru connectors on individual user stations or viaModel TW-5W 1x5 Splitters. Three (3) connectors accommodate separate2-channel power supplies like the PS-20. Designed specifically to work within the TW IntercomSystem, the SAP-612 is a cost-effective device usedin small, medium, or large systems. If additionaloutput assignments are required, two (2) or moreSAP-612 can be operated in parallel. The SAP-612is completely passive, and therefore does not require apower source. Specifications
