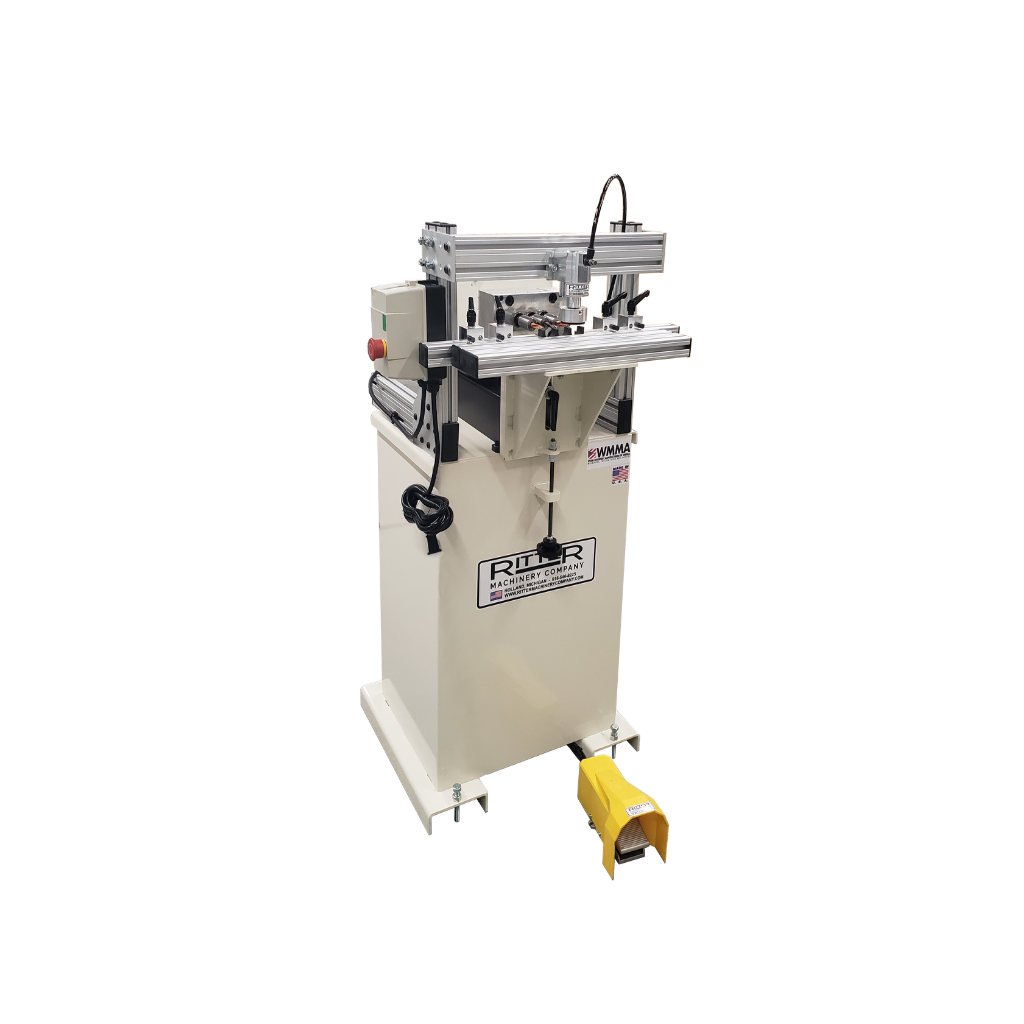

RITTER R132 - TRIPLE SPINDLE HORIZONTAL BORING MACHINE - 32mm Centers

  Description Designed for a dedicated and accurate boring center with single, double or triple spindle boring capability. Stile and rail boring set-up features help eliminate costly mistakes, rejected parts and increase production efficiency. The workpiece is held firmly against the table by a pneumatic clamp, and there is full adjustability of the index stops, bed height, and depth of cut. Standard Features Triple Spindle Gear Driven Drill Head 32mm Spindle Spacing 10mm Bored Female Collets With Set Screw Lock 0.75 HP Spindle Drive Motor, TEFC 0-2" Adjustable Boring Depth (4) Material Positioning Stops 2" Bore Clamping Cylinder Foot Actuated Boring Cycle 3450 RPM Spindle Speed 6" X 20" Table Area Tooling Not Included Technical Data and Specifications Shipping Weight: 381 LBS Shipping Dimensions: 38” X 38” X 55”
