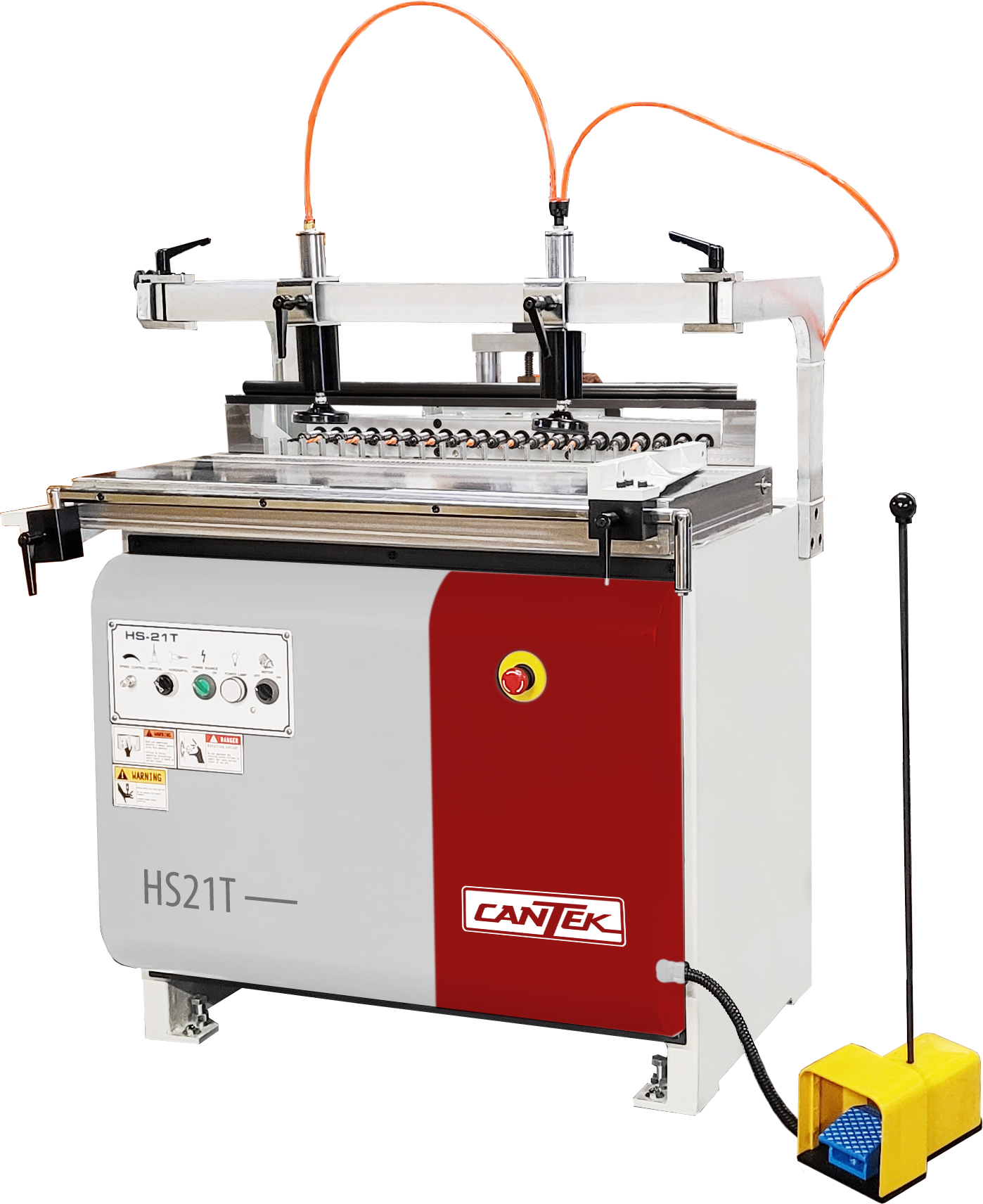

Cantek, HS21T 21-Spindle Construction Drilling Machine

Flexible boring solution for construction drilling, line drilling, and more. The Cantek HS21T 21-Spindle Construction Drilling Machine is a versatile construction drilling machine which is capable of line boring, end drilling, & construction drilling functions.  The HS21T has a robust fabricated steel construction with precision machined cast iron table.  The boring head is cycled pneumatically and runs on precision linear guide rails for smooth drilling cycles. A 2 ½ HP motor powers the boring head with 21 gear driven drill bits and operates at 2800 RPM.  Each spindle is equipped with a quick-change chuck to facilitate fast changeovers between drilling operations.  The machine comes equipped with fold away side fences which are positioned using a linear scale.  The 118” (3 meter) back fence is equipped with (4) flip tops which is ideal for positioning panels during line boring applications and more.  The boring head is effortlessly tilted from 0-90o by a pneumatic cylinder.
