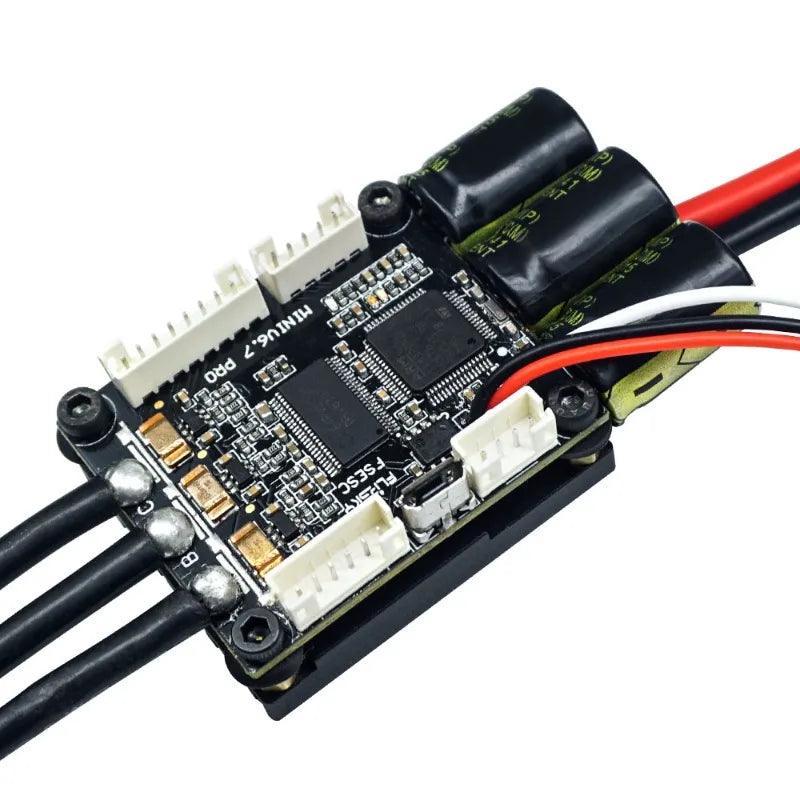

2022 12S 70A Flipsky New Mini FSESC 6.7 Pro Speed Controller Based on

Dear friend, thank you for visiting the store, if you need more models and new products, please contact us and get a discount: WhatsApp: +86 17873567381 Email: 1value168@ 2022 12S 70A Flipsky New Mini FSESC 6.7 Pro Speed Controller Based on VESC 6 or E-Board Ebike Efoil Specification Hardware V6.7 Pro Firmware Latest Version Instantaneous current 70A continuous / 200A peak Voltage 8V-60V (Cells: safe for 3-12S LiPo) BEC type Internal driver support Frequency PWM input Reverse Yes Firmware: Latest Version Continuous current: 70A; instantaneous current: 200A Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! ) BEC: 5V@1A ERPM: 150000 Control Interface Ports:USB,CAN,UART, SPI, IIC Supported Sensors:ABI,HALL,AS5047,AS5048A Input Set Support:PPM, ADC, NRF, UART Modes:DC, BLDC, FOC (sinusoidal) Regenerative capacity: Yes Programmable: Yes Motor wire: 12AWG Power cable:12AWG Size:67x39x18.7mm(Including heatsink) Feature: Support four control modes: Current/Dutycycle/Speed /Position control mode. Using 6pcs NVMFS5C612NL high current MOSETS (60V 235A). Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160. Product Advantages   Wiring Diagram Packaging & Shipping   Related Products            Dual Mini VESC 6.6                         Dual VESC 4.20 Plus                   Dual VESC 6.6 Plus                     50A VESC 4.12                           200A  60V VESC 6                    VESC 6 with Case
