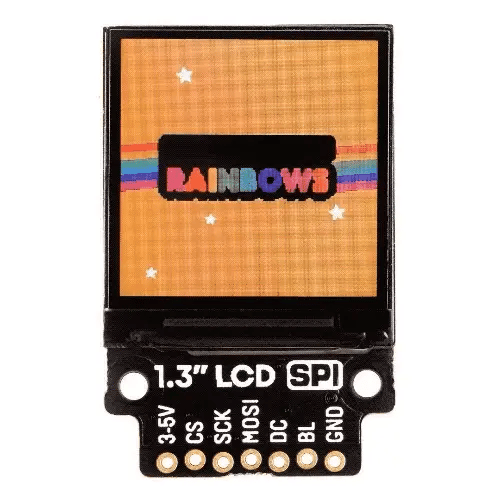

Pimoroni 1.3" SPI Colour Square LCD (240x240) Breakout

Crisp, high-res, with great viewing angles (IPS), this 1.3" square, 240x240 pixel, color LCD will add some pizzazz to your Raspberry Pi or Arduino projects. The square form factor of this display makes it great for cramming lots of information on—data, graphs, and even things like album art and photos. Like the smaller 0.9" LCD breakout, this one is an IPS display, so it has great viewing angles and it's super-crisp and bright. It's driven by SPI and you should be able to run it at up to ~50FPS, although we've found that anywhere from 10FPS looks good for most uses.   Features 1.3" color LCD (240x240 pixels) SPI interface 3.3V or 5V compatible Reverse polarity protection Compatible with Arduino Compatible with all models of Raspberry Pi (Python library) Compatible with Raspberry Pi Pico (C++/MicroPython libraries) Display specifications 240x240 pixels (~260 PPI) 23.4x23.4mm active area 250m2 luminance 800:1 contrast ratio 160° viewing angle (horizontal and vertical) ST7789V driver chip Software Pimoroni has adapted an existing Python library to drive this display. The library makes it straightforward to display images, text, or graphics, and even display animated GIFs! You can also use this breakout with Raspberry Pi Pico and other RP2040 boards, using C++ or Pirate brand MicroPython. Connecting to a Raspberry Pi Our Python library is set up to use SPI 0 by default on the Pi (BCM 7 for CS, BCM 11 for SCK, and BCM 10 for MOSI), BCM 9 for DC, and BCM 19 for the backlight. Here are which pins to connect between your 0.96" LCD Breakout and your Pi's GPIO (note that it's BCM pin numbering): 3-5V to any 5V or 3V pin CS to BCM 7 SCK to BCM 11 MOSI to BCM 10 DC to BCM 9 BL to BCM 19 GND to any ground pin You can of course use other pins with your LCD Breakout, but you'll have to change them accordingly when you instantiate the display in your code. Connecting to a Raspberry Pi Pico The easiest way to use the SPI breakouts with a Raspberry Pi Pico is by plugging them into a Pico Breakout Garden Base. If you'd rather wire them up to a Pico directly, here's how it goes! 3-5V to any 5V or 3V pin CS to GP17 SCK to GP18 MOSI to GP19 DC to GP16 BL to GP20 GND to any ground pin Notes Dimensions: 41.2x26.6x5.5mm (approx) Drawing
