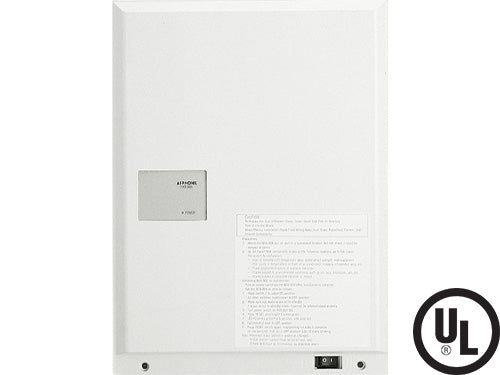

Aiphone - NHX-80X CENTRAL CONTROL UNIT

Central Control Unit Controls system functions with microprocessor. Add the NHR-30K for additional capacity. Features UL 1069 Listed Controls system functions with microprocessor All wire terminations are made inside with easy “screwless” wire connections Specs Wire Type Sub / Duty Station to Central Control Unit: 4 twisted pair, low cap, PE, overall shield - use Aiphone #862208Master Station to Central Control Unit: 5 twisted pair, low cap, PE, overall shield - use Aiphone #862210 Distance Sub Station to Central Control Unit: 165'(22AWG)Duty Station to Central Control Unit: 65'(22AWG)Master Station to Central Control Unit: 65'(22AWG)Sub Station to Central Control Unit: 165'(22AWG). Max. cumulative wire distance per trunk line: 330'(22AWG).
