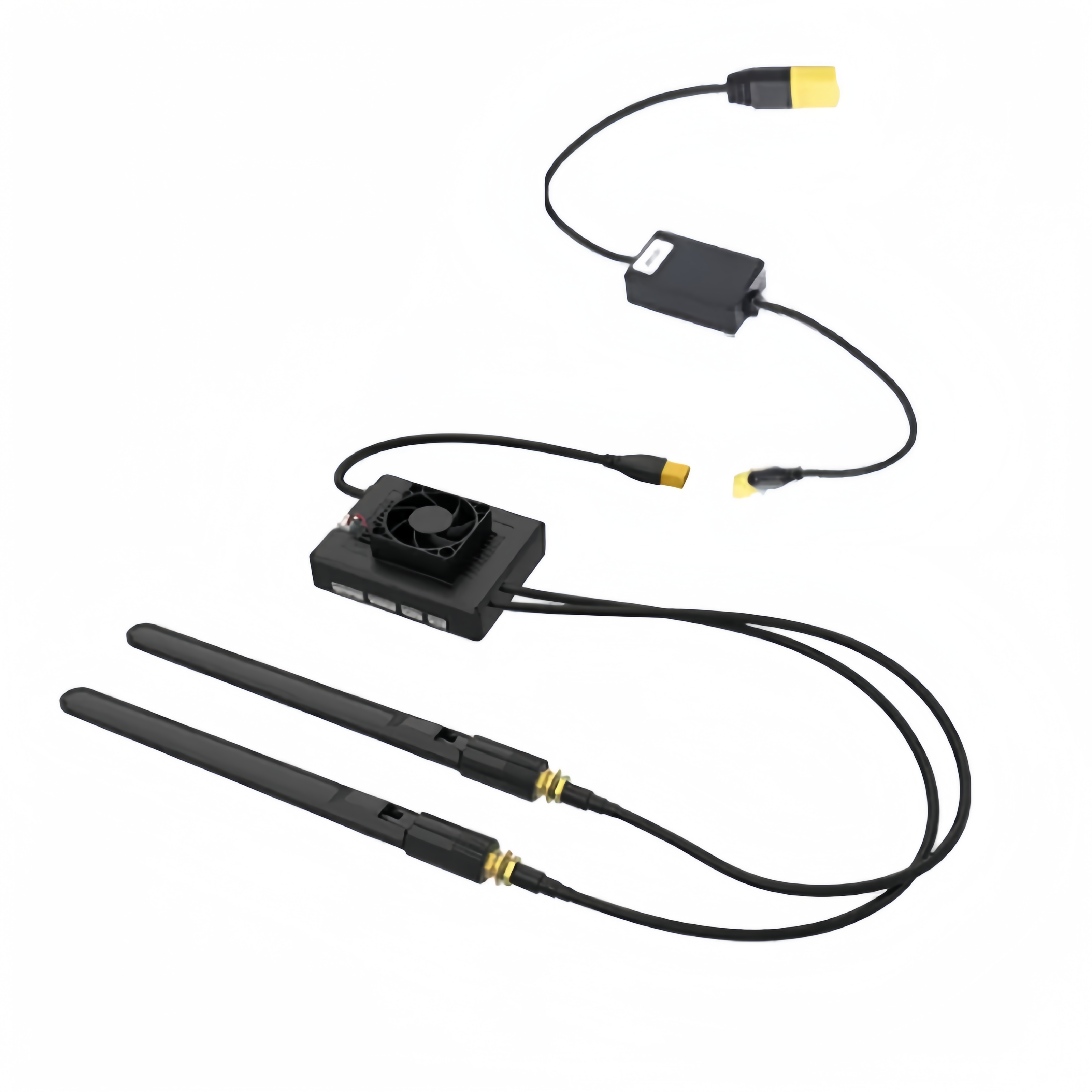

SIYI MK32 HM30 MK15 Air Unit with Long Range Full HD

Name: SIYI MK32 HM30 MK15 Air Unit with Long Range Full HD
Price: 108 USD
Availability: InStock

Was $110.63 SAVE 2%

$108.00

{{option.name}}: {{selected_options[option.position]}}

Unmanned RC

View Store

SIYI MK32 HM30 MK15 Air Unit with Long Range Full HD Technical SpecificationsMK32 / HM30 Air UnitSignal Output: 16 channels of S.BUS, 5 channels of PWMInterface & Ports:- SBUS: 3-Pin- Datalink (to FC): UART 4-Pin- PWM Channel 1 to 5: 6-Pin- Video Input: Ethernet 8-Pin- Firmware Upgrade: Type-CDimensions (antenna excluded, fan included): 70 x 55 x 16 mmWeight (antenna excluded): 74 gAntenna Gain (standard omni): 5 dBiPower Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)Working Temperature: -10 to 50℃MK15 Air UnitSignal Output: 16 channels of S.BUS, 5 channels of PWMInterface & Ports:- SBUS: 3-Pin- Datalink (to FC): UART 4-Pin- PWM Channel 1 to 5: 6-Pin- Video Input: Ethernet 8-Pin- Firmware Upgrade: Type-CDimensions (antenna excluded): 70 x 55 x 16 mmWeight (antenna excluded): 100 gAntenna Gain (standard omni): 5 dBiPower Input: 14.8 to 58.8 V (4S to 14S)Working Temperature: -10 to 55℃
