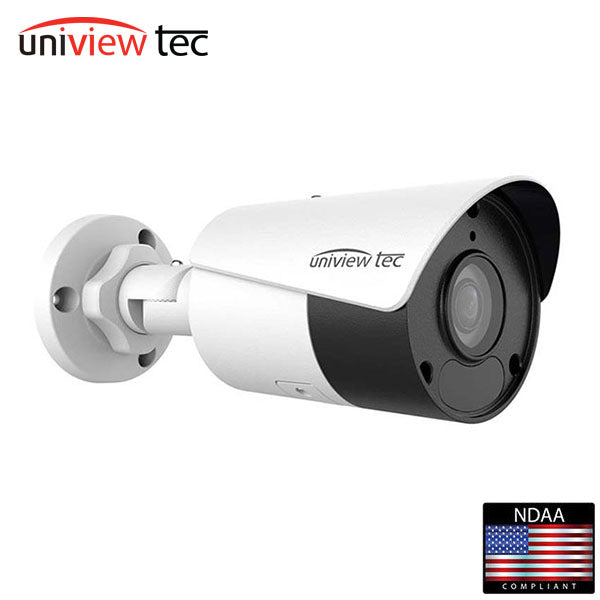

Uniview Tec / UVT / IPB440X / Bullet Camera / 4MP / 4mm Fixed Lens / True Day-Night / WDR / 50m IR
Fully Adheres to National Defense Authorization Act (NDAA) Guidelines Exceptional Video Quality with 4MP, 2688 x 1520 Resolution Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet 4mm fixed lens TRUE Day/Night and WDR functionality for all Lighting Conditions Corridor Mode, Backlight Compensation, 3D DNR (Digital Noise Reduction) One-way Audio with Built-In Microphone Built-in Micro-SD Card Slot enables local storage up to 256GB ONVIF Profile S Compliant Intelligent Perimeter Protection with Smart Intrusion Detection Analytics PoE & 12VDC Power Options IP67 Weather Resistant Housing & Optional Mounts Available Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices Camera Sensor 1/3", progressive scan , 4 megapixel, CMOS Lens 4mm@ F1.6 Angle of View (H x V) 83.7° x 44.9° Shutter Auto/Manual, 1 ~ 1/100000 s Minimum Illumination Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR Day/Night IR-cut filter with auto switch (ICR) Digital noise reduction 2D/3D DNR Signal / Noise Ratio >56dB IR LED Range Up to 50m (164ft) IR range WDR 120dB Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main Profile, High Profile Maximum Frame Rate / Stream Main: 4MP (2688 x 1520) @ 30fps Sub: 720P (1280 x 720) @ 30fps HLC, BLC, 9:16 Corridor, Defog, Flip Supported OSD, Privacy Mask, Motion Detection & ROI Up to 8 areas Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL Compatible Integration ONVIF (Profile S, Profile T), API Network RJ45, 10M/100M Base-TX Ethernet Smart Intrusion Prevention Cross Line, Intrusion, Enter/Leave Area Detection Local Storage Micro-SD, up to 256GB Network Storage Automatic Network Replenishment (ANR) General Power 12VDC +/- 25%, PoE (IEEE802.3 af); Power consumption: Max 6W Dimensions (L x W x H) & Weight 190 × 73 × 71mm (7.5 × 2.9 × 2.8”); 0.45kg (0.99lb) Audio I/O & Compression 1 / 0, w/ built-in Mic; G.711 Compression Operating Temperature & Humidity -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) Conformity Certifications IP67, CE, FCC Downloads: Spec Sheet User Manual Installation Guide Quick Set Up
