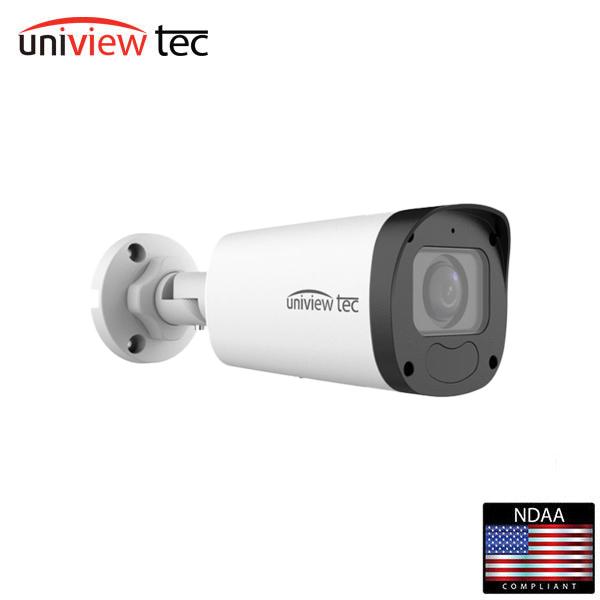

Uniview Tec / UVT / IPB5E212MX / Bullet Camera / IP / 5MP / 2.8-12mm Varifocal Lens / True Day-Night / WDR / 50m IR
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesExceptional Video Quality with 5MP, 2880 x 1620 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet2.8 ~ 12mm motorized varifocal, automatic focus lensTRUE Day/Night and WDR functionality for all Lighting ConditionsOne way Audio w/ built in microphone, Corridor Mode, Backlight Compensation, 3D DNR (Digital Noise Reduction)ONVIF Profile S Compliant, PoE & 12VDC Power OptionsSmart Behavior Video Analytics such as Intrusion, Tampering, Audio and Human Body DetectionBuilt-in Micro-SD Card Slot enables local storage up to 256GBIP67 Weather Resistant Housing and Optional Mounts AvailableSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices Camera Sensor 1/2.7", progressive scan , 5 megapixel, CMOS Lens 2.8~12 mm, varifocal automatic focusing and motorized zoom lens Angle of View (H x V) 108.79° ~ 33.23° x 56.9° ~ 18.33° (Wide ~ Tele) Shutter Auto/Manual, 1 ~ 1/100000 s Minimum Illumination Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR Day/Night IR-cut filter with auto switch (ICR) Digital noise reduction 2D/3D DNR Signal / Noise Ratio >52dB IR LED Range Up to 50m (164ft) IR range WDR 120dB Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main Profile, High Profile Maximum Frame Rate / Stream Main: 5MP (2880 x 1620) @ 25fps Sub: 720P (1280 x 720) @ 30fps HLC, BLC, Defog, Flip, 9:16 Corridor Supported OSD, Privacy Mask, Motion Detection & ROI Up to 8 areas Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP Compatible Integration ONVIF (Profile S, G, T), API Network RJ45, 10M/100M Base-TX Ethernet Behavior Video Analytics Intrusion, Human Body Detection, Motion detection, Tampering alarm Local & Network Storage Micro-SD, up to 256GB / Automatic Network Replenishment (ANR) General Power 12VDC +/- 25%; PoE (IEEE802.3 af); Power consumption: Max 8.5W Audio I/O & Compression 1 / 0, w/ built-in Microphone; G711 Dimensions (L x W x H) & Weight 206 × 74 × 74mm (8.1 × 2.9 × 2.9”); 0.55kg (1.2lb) Operating Temperature & Humidity -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) Conformity Certifications IP67, CE, FCC Downloads Spec Sheet Manual
