Leuze SLE46C-40.K4/4P: Single Beam Safety Device Receiver - 50126327
trimantec.com

Leuze SLE46C-40.K4/4P: Single Beam Safety Device Receiver - 50126327

$254.41
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Trimantec

View Store

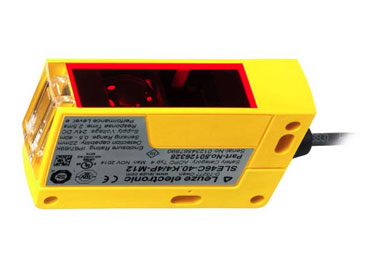

Single beam photoelectric safety switch receiver, type 4, alignment indicator, diagnostic output, cable connection. Compatible with the following transmitter:SLS46C-40.K48 | 50126545Series: 46CType: 4,IEC/EN 61496Response time: 2.5 msProtective Circuit: Polarity reversal protection, Short circuit protectedSupply voltage: 24 V, DC, -20-20% Incl. residual rippleNumber of digital switching outputs: 2 piece(s)Voltage type: DCSwitching current, max: 100 mASwitching element: Transistor, PNPSwitching principle: Dark switchingFunction: Diagnostic outputSwitching element: Transistor, PNPSwitching principle: Light switchingFunction: Switching outputType of connection: CableCable length: 2,000 mmSheathing material: PURType of display: LEDNumber of LEDs: 2 piece(s)Environmental test: ECOLABDegree of protection: IP 67, IP 69KCertifications: c UL US, TUV SUd Standards applied: IEC 60947-5-2, IEC/EN 61496 Functions: Alignment indicator, Diagnostic outputCompact designThese single beam safety devices
