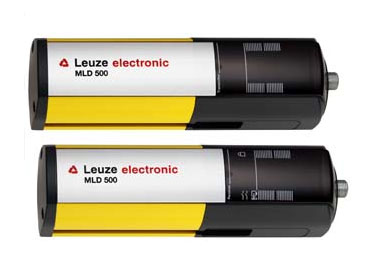

Leuze MLD520-R1: Single Light Beam Safety Device Receiver - 66553000
trimantec.com

Leuze MLD520-R1: Single Light Beam Safety Device Receiver - 66553000

$485.13
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Trimantec

View Store

Type 4 single beam safety device receiver, compatible with MLD500-T1 transmitter, M12 connector, EDM/RES, operating range .5-70 m Compatible with the following transmitter:MLD500-T1 | 66501000Series: MLD 500Type: 4,IEC/EN 61496Response time: 25 msProtective Circuit: Short circuit protected, Overvoltage protection Supply voltage: 24 V DC -20 - 20%Number of safety-related switching outputs (OSSDs): 2 Number of digital switching outputs: 1Voltage type: DCSwitching voltage high, min: 18.2 VSwitching voltage low, max: 2.5 VSwitching voltage, typ: 23 VSwitching element: Transistor, PNPType of connection: ConnectorFunction: Machine interfaceThread size: M12Material: MetalType of Display: LEDNumber of LEDs: 1 Degree of protection: IP 67Certifications: c CSA US, c TUV NRTL US, TUV Sud Functions: Start/restart interlock (RES), selectable, Contactor monitoring (EDM), selectable The variable sensorThese Single Light Beam Safety Devices offer a selectable start/restart interlock (RES) and contacto
