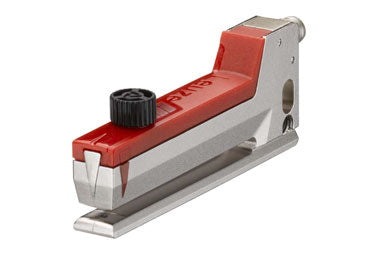

Leuze GS 63B/6-S8: Forked Photoelectric Sensor - 50128011
trimantec.com

Leuze GS 63B/6-S8: Forked Photoelectric Sensor - 50128011

$320.33
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Trimantec

View Store

Forked photoelectric sensor, switching signal in label gap, m8 connector, infrared LED light source, 2 mm label width and gap, features multiturn potentiometer, horizontal plug outlet, IP 67 protection Series: 63Principle of physics: OpticalApplication: Detection of non-transparent labelsLabel width: 2 mmLabel gap: 2 mmMedium: Not transparentLight source: LED, InfraredSwitching frequency: 10,000 HzResponse time: 0.05 msSupply voltage: 10 - 30 V, DCNumber of digital switching outputs: 1Switching element: Transistor, Push-pullSwitching principle: Switching signal in label gapType of connection: ConnectorThread size: M8Plug outlet: Horizontal (parallel to belt movement)Mouth width: 3 mmMouth depth: 61 mmDimension: 11 mm x 30 mm x 80 mmHousing material: Metal, Diecast zinc, chemically nickel-plated, PC, Plastic Operational controls: Multiturn potentiometerDegree of protection: IP 67Certifications: c UL USThe chemically nickel-plated metal housing of this optical forked photoelectric senso
