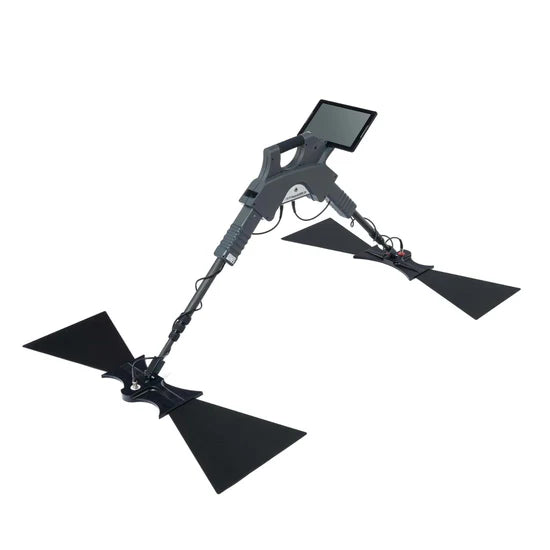

OKM Gepard GPR 3D

Flexible & powerful: Ground Penetrating Radar using an omnidirectional unshielded transmission system to reach maximum depths down to 40 m (132 ft) Detection depth: With this technology customers found objects down to 40 m (132 ft) deep Use cases: Archaeology, geotechnical engineering, treasure hunting Operating modes: Ground Scan, Live Stream Detectable objects: Underground objects like pipelines, cavities, cables, conduits tunnels, bunkers and foundation   Control Unit Dimensions (H x W x D): 450 x 260 x 130 mm Weight: approx. 1.6 kg Input voltage (max.): 8.4 V DC / 1.0 A Operating temperature: –20°C – 55°C Storage temperature: –25°C – 60°C Waterproof: No Operating time: approx. 4 hours Air humidity: 5% – 70% Feedback: acoustic, visual Protection Type: IP 20 Data Transmission Technology: WiFi, 2.4 GHz Transmission Frequency Range: 60 – 300 MHz Timing/Sampling Adjustments: 4 Levels Complete Cycle Measurements: 9 per second Telescopic shaft Dimensions (H x W x D): 70
