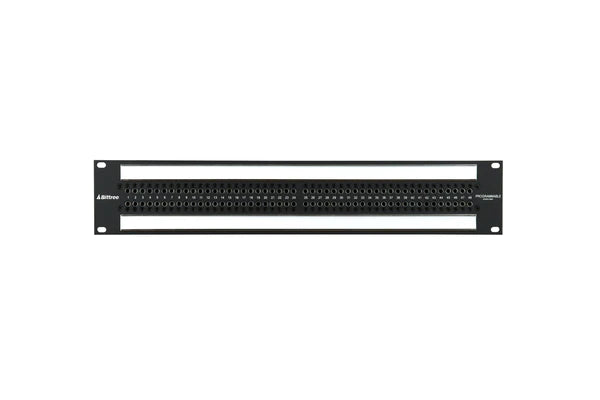

BITTREE 969S 2X48 2RU TT FRONT PROGRAMMABLE PATCHBAY

Bittree® Front Selectable TT (Bantam) 969s Series Audio Patchbay in 1.5RU • High-density 2x48 jack configuration with mono (even) jack spacing• Selectable normalling and grounding: - Circuits can be easily changed via shunts under both designation strips • Digital AES wire used for internal wiring • 1-48 left-to-right numbering on front panel for easy circuit identification • 2 x DS800-10SA-ASSY designation strip assemblies, "Over/Under" orientation• Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces• 6" (15.24 cm) deep rear lacing bar included with E3 rear interfaces: - Alternative 3" (7.62 cm) deep lacing bar available Options • Rear Interface – choose from four standard rear interfaces: - E3 (3 pin ELCO connectors)- DB25- E90 (90 pin ELCO connectors) • Normalling & Grounding – choose from three standard configurations or specify your own at checkout: - Normalling – circuits can be programmed to full normal, half normal or non- normal- Grounding – patc
