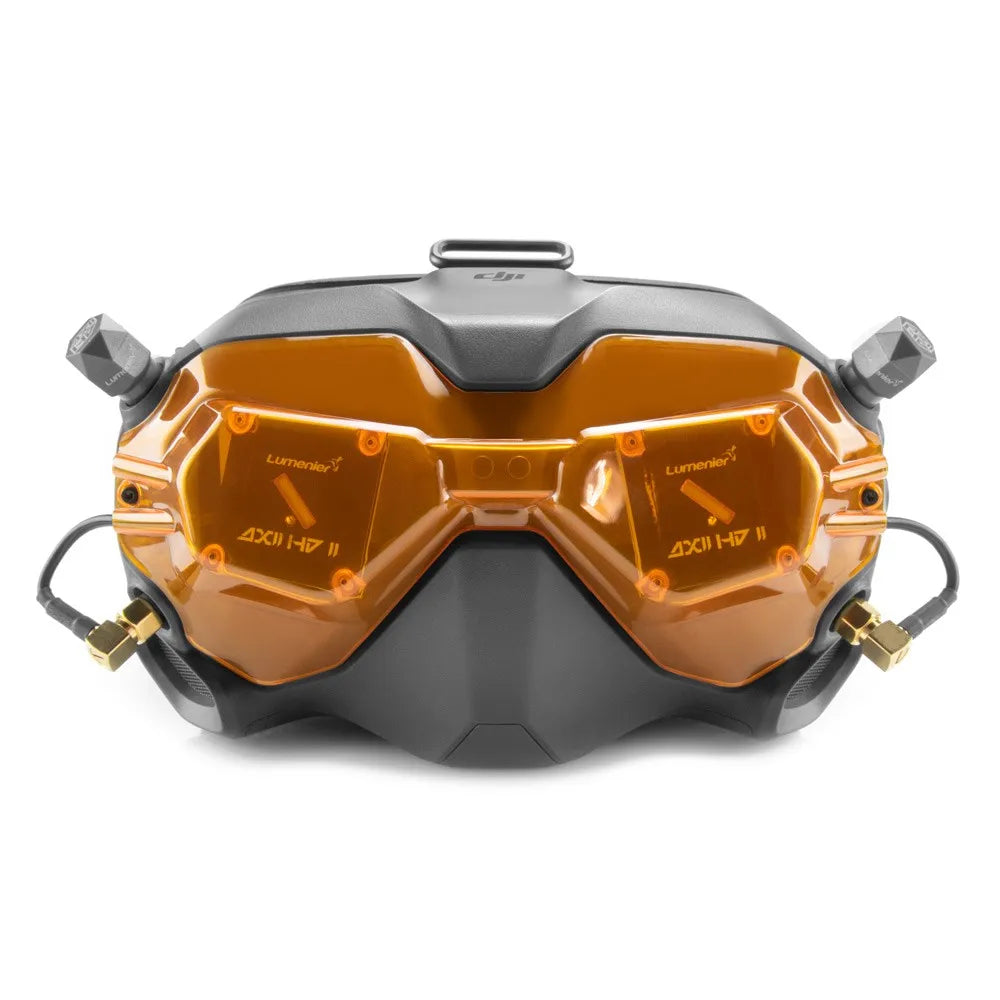

LHCXRC DJI HD 2 Patch 5.8GHz Directional FPV Antenna Protective Shell Crystal Short Omni LHCP RP-SMA Connector for FPV Goggles

SPECIFICATIONSBrand Name: NoEnName_NullOrigin: Mainland ChinaMaterial: Composite MaterialRecommend Age: 14+yUse: Vehicles & Remote Control ToysModel Number: Lumenier AXII HDFour-wheel Drive Attributes: AssemblageWheelbase: Bottom Plate Description： Specially designed for DJI high-definition digital FPV glasses, higher gain, more stable video transmission effect, better signal penetration for longer distances, high-gain directional and LHCP circularly polarized omnidirectional antenna, the shell is translucent black, Translucent green, semi-transparent orange three colors choose PC injection molding integrated high-quality shell. FOR DJI HD 2 Flat Panel Directional Antenna Model: LHCXRC HD-02 Frequency range: 5.3GHz-6.0GHz Gain: 8.6 dBiC VSWR: <=1.3 Radiation efficiency: 94% Beam width: 75° H. 75° V. Polarized: (LHCP) Left Hand Circularly Polarized Interface: RP-SMA (Fits DJI Goggles directly, not to be used on standard SMA) Weight: 31g FOR DJI HD2 Cylindrical Antenna Gain: 3.5dbic Axial ratio: 0.9 Frequency range: 5.3GHz-6.0GHz Radiation efficiency: 98% Beam width: 360 degrees (omni-directional) VSWR: <=1.5 Weight: 6.5g Dimensions: 20mm x 28mm Interface: RP-SMA (custom long) Polarization: Left Hand Circularly Polarized (LHCP)
