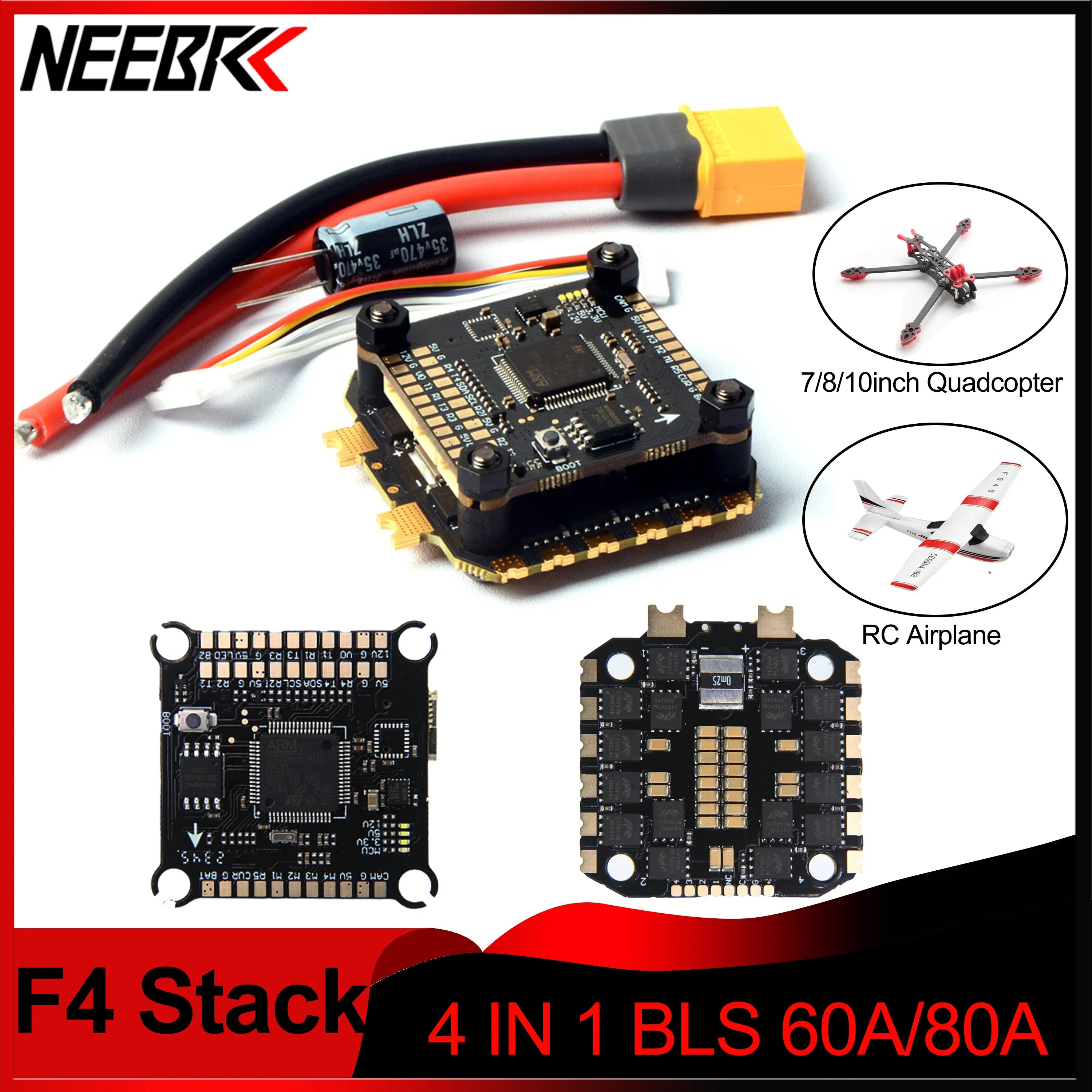

F405 F722 F7 Flight Controller FC 60A 80A 100A STACK Dshot ESC 3-8S SURPORT BetaFlight/INAV for MARK4 FPV Freestyle Drone Plane

  F405 F722 Flight Controller FC 60A 80A 100A STACK Dshot ESC 3-8S SURPORT BetaFlight/INAV for MARK4 FPV Freestyle Drones Airplane F405 FC: MCU: STM32F405 IMU(Gyro): ICM42688p（Default）/MPU6000（selectable） Black box :16M Black Box OSD :BetaFlight OSD ( AT7456E chip) Barometer: selectable USB Port : Type-C DJI Air Unit connector：YES Power Input： 3S - 6S Lipo BEC Output：5V/3A 12V/2.5A UART：5 sets I2C：YES LED Pad：YES (Used for WS2812 LED control) Buzzer Pad：YES Mounting : 30.5 x 30.5mm ( 4mm hole diameter) Dimension: 36(L) x 36(W) x 7(H)mm Weight: 7g 60A ESC： MCU: EFM8BB21F16G MOSFET: High performance MOSFET Power Input: 3-6S LiPo Continuous Current: 60A * 4 Burst Current: 65A(10seconds) ESC Telemetry :NO Current Sensor Scale：200 ESC Protocol :DSHOT300/600 Firmware: Q_H_30 24k Mounting :30.5 x 30.5mm( 4mm hole diameter) Dimension :44.5(L) * 43(W) * 6.3mm(H) Weight 13.5g 80A ESC： MCU: EFM8BB21F16G MOSFET: High performance MOSFET Power Input: 3-6S LiPo Continuous Current: 80A * 4 Burst Current: 90A(10seconds) ESC Telemetry :NO Current Sensor Scale：200 ESC Protocol :DSHOT300/600 Firmware: Q_H_40_24_v0.19.2 Mounting :30.5 x 30.5mm( 4mm hole diameter) Dimension :57(L) * 56(W)*7mm(H) Weight 28g 100A ESC： MCU: EFM8BB21F16G MOSFET: High performance MOSFET Power Input: 3-8S LiPo Continuous Current: 100A * 4 Burst Current: 120A(10seconds) ESC Telemetry :NO Current Sensor Scale：200 ESC Protocol :DSHOT300/600 Firmware: Q_H_40_24_v0.19.2 Mounting :30.5 x 30.5mm( 4mm hole diameter) Dimension :57(L) * 56(W)*7mm(H) Weight 28g Features: 1. The F722 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference. 2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation.     MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity. 3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance. 4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button. 5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.   Descriptions: F722 Flight controller: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.   Specifications: (Model): F722 Flight Controller (MCU) STM32F722RET6 (IMU) ICM-42688 (OSD): AT7456E (Baro) SPL06-001 (Blackbox): 16MB (Input voltage): 3-8S Lipo(11.4-36V) 5V-BEC: 5V/2.5A ±0.1V 10V-BEC: 10V/2A(USER1) IO2: USER2 (Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX UART: UART1/2/3/4/5/6 IIC: 12C1 Led Strip:YES (Buzzer): 5V (ESCsignal): Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600 USB: TYPE-C (Current port): YES (Voltage sensor) YES DFU (DFU button): YES (Firmware): Betaflight 4.3.1 JHEF7DUAL.HEX (Size): 36*36MM (Mounting Hole) 30.5*30.5*4MM (Weight) 8.8g Item Name: BLS 60A 4-in-1 ESC Size: 41 * 39 * 5mm Aperture: 30.5 * 30.5mm (after installing the shock absorber ball, the aperture is 3mm) Firmware: BLHELI-S Weight: 15g Input voltage: LIPO 3-6S Continuous current: 60A Maximum current: 65A (10 seconds) Processor: EF8BB21 Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW Current sensor: supports Item Name: BLS 80A 30.5x30.5 4-in-1 ESC MCU: EFM8BB21F16G MOSFET: High performance MOSFET Power Input: 3-8S LiPo Continuous Current: 80 * 4 Burst Current: 90A(10seconds) ESC Telemetry :NO Current Sensor Scale:200 ESC Protocol :DSHOT300/600 Firmware: Q_H_40_24_v0.19.2 Mounting :30.5 x 30.5mm( 4mm hole diameter) Dimension :57(L) * 56(W) Weight 28g Item Name: BLS 100A 30.5x30.5 4-in-1 ESC MCU: EFM8BB21F16G MOSFET: High performance MOSFET Power Input: 3-8S LiPo Continuous Current: 100 * 4 Burst Current: 120A(10seconds) ESC Telemetry :NO Current Sensor Scale:200 ESC Protocol :DSHOT300/600 Firmware: Q_H_40_24_v0.19.2 Mounting :30.5 x 30.5mm( 4mm hole diameter) Dimension :57(L) * 56(W) Weight 28g Note: 1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. 2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks! SPECIFICATIONS Brand Name: NeebRC,NEEBRC Choice: yes For Vehicle Type: Airplanes Four-wheel Drive Attributes: Assemblage Hign-concerned Chemical: None Is Electric: No battery Material: Composite Material Model Number: F405 Origin: Mainland China RC Parts & Accs: Speed Controllers Recommend Age: 14+y Remote Control Peripherals/Devices: ESC Technical parameters: Value 8 Upgrade Parts/Accessories: Frame Use: Vehicles & Remote Control Toys
