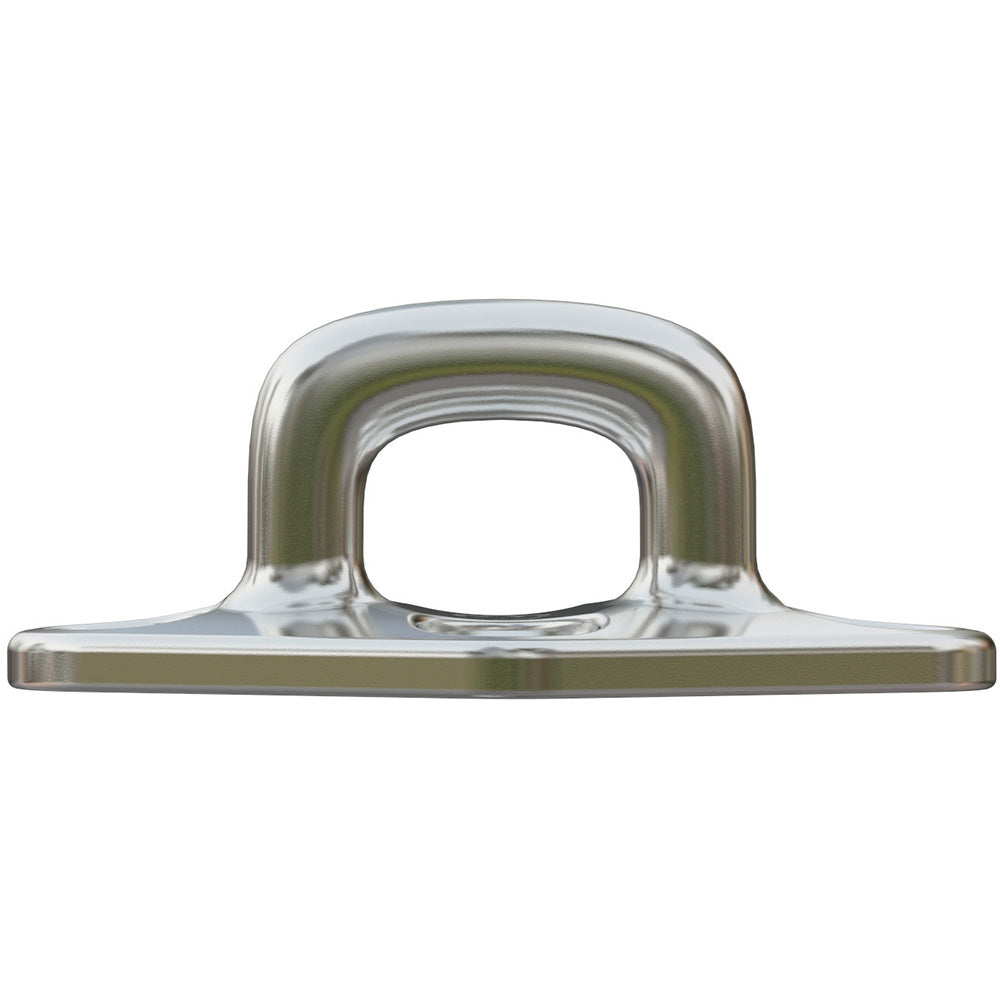

Wichard Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 Screw

Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 ScrewFeatures: Mechanical resistance versus corrosion resistance ratio Optimized dimensions For M5 screw Applications: Mast foot blocks  Reefing blocks Various fastenings Specifications: Materials: Duplex stainless steel grade Working Load: (lb) 2645.5 / (kg) 1200 Breaking Load: (lb) 7054.7 / (kg) 3200 Weight: (lb) 0.13 / (g) 59 W.L 1 (90 degrees): (lb) 2645.5 / (kg) 1200  W.L 2 (45 degrees): (lb) 2425 / (kg) 1100  W.L 3 (0 degrees): (lb) 2425 / (kg) 1100  B.L 1 (90 degrees): (lb) 7054.7 / (kg) 3200  B.L 2 (45 degrees): (lb) 6613.8 / (kg) 3000  B.L 3 (0 degrees): (lb) 6613.8 / (kg) 3000  Dimensions: A: (inch) 2 23/64" / (mm) 60 B: (inch) 1 13/16" / (mm) 46 C: (inch) 1 1/2" / (mm) 38 D: (inch) 15/16" / (mm) 24 E: (inch) 15/32" / (mm) 12 F: (inch) 3/4" / (mm) 19 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaki
