632702CE-4 Manley Pistons 2015-2021 WRX FA20
stmtuned.com

632702CE-4 Manley Pistons 2015-2021 WRX FA20

$806.24
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

STM Tuned Inc.

View Store

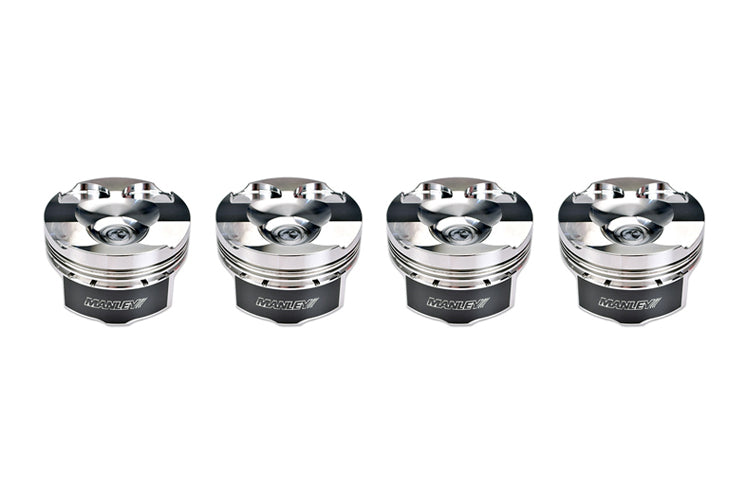

This set of Manley Pistons for the 2015-2021 FA20 Subaru WRX includes a full set of 4 pistons, wrist pins, ring sets and round wire locks. Please review all information carefully. See more Manley Pistons for the FA20 2015-2021 WRXVehicle Fitment:2015-2021 Subaru WRX 2.0L FA20Piston Specs: Part Number: 632702CE‑4 Pin: Extreme .210" Wall Bore Size: 86.25 (+.25mm) Rod Length: 5.090" Stroke: 86mm Standard Stroke (2.0L) Comp Distance: 1.285" Dome Volume: -13 cc Compression Ratio: 10.0:1 Piston Type: Dish Weight: 350 Grams Ring Set: 46863DT‑4 Manley Platinum Series Pistons:• Moly Coated Skirts• 2618 high strength material• Pressure balance groove• Will accommodate +1mm valve sizes• Premium Steel top rings with Napier second ring• Round wire locks included• Recommended piston clearance: .003" for mildly boosted and .0035" for highly boosted measured .850" from the bottom of the oil ringIncludes:(4) Piston(4) Piston Ring Set(4) Wrist Pin(4) Wire Locks Images:Pistons
