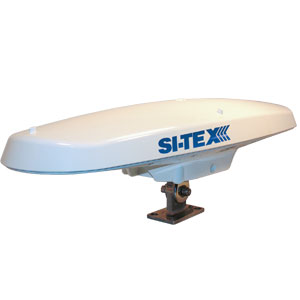

Sitex Vector Pro G2 Compass IMO Certified GPS Compass
Si-tex Vector Pro G2 GPS CompassModel: VECTOR PRO G2 The rugged enclosure combines GPS’ Crescent Vector board and two multipath-resistant antennas for simple installation The half-meter length smart antenna mounts easily to a flat surface or pole The stability and maintenance-free design of the Vector Pro replaces traditional gyrocompasses at a fraction of the cost IMO Wheelmarked for Commercial applications Experience superior navigation from the accurate heading and positioning performance available with the Vector Pro G2 Series GPS Compass.Specifications GPS SENSOR SPECIFICATION Receiver Type Twin Receivers w/ L1, C/A code, with carrier phase smoothing Channels Two 1?channel, parallel tracking, (Two 10- ?channel when tracking WAAS) Update Rate Standard 20 Hz Adjustable (position and heading) Horizontal Accuracy < 0.6 m 95% confidence (* < 2.5m 95% confidence (aiutonomous, no SA)** Heading accuracy <0.3° rms Pitch/roll accuracy < 1° rms Rate of turn 90°/s max Start up time < 60s typical Heading fix < 20s Satellite reacquisition < 1s Beacon Sensor Specifications (G2B version) Channels 2-channel parallel tracking Frequency range 283.5 to 325 kHz Operating modes Automatic (signal strength or range) and manual Compliance IEC 611 08-4 beacon standard Communications Srial ports 2 full duplex RS-232 and 2 half duplex RS-422 Data I/O protocol NMEA 0183 Enviromental Operating temperature rage -30°C to +70°C Humidity 100% non condensing Input voltage 9-36vDC Power consumption <5w Isolation Power supply isolated fromserial ports Mechanical Dimensions 23.6" x 6.3" x 7.1"
