Radiolink Mini-PIX Flight Controller System-FCS Set (Version 1.2)
spexdrone.com
Electronics / Circuit Boards & Components

Radiolink Mini-PIX Flight Controller System-FCS Set (Version 1.2)

$78.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

SPEXDRONE-STORE

View Store

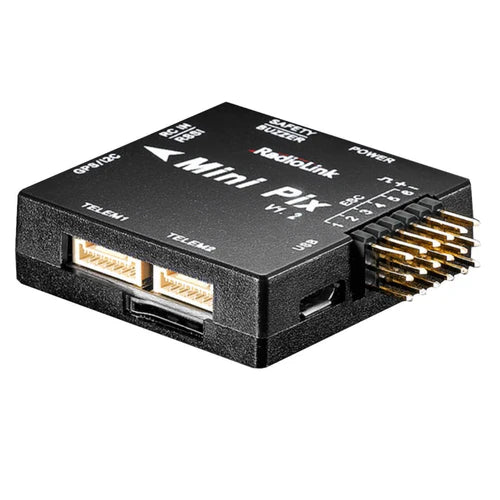

Radiolink Mini-PIX Flight Controller System-FCS Set (Version 1.2) The Mini-PIX Flight Controller System is based on the mature research and development of PIXHAWK. The Radiolink Mini-PIX is equipped with a STM32F405VGT6 processor, a LPS22HB barometer, a MPU6500 accelerometer and a QMC5883L compass with the same technology as in the HMC5983. It has a shell completely closed to protect the interaction effects of air current wake on air pressure during flight. The main board has air pressure vent to ensure accuracy of the barometer testing. Its shell design and vibration damping with the software make the Mini-PIX better in Altitude Hold Effect. Mini PIX Flight Controller V1.2 Small flight controller with the same Functions as PIXHAWK Better Altitude Hold Vibration Damping by Software Equipped with a processor, a barometer, an accelerometer, a compass, etc. Compatible Models: Fixed-Wing / 3 to 6 Axis Multicopter / Helicopter / Cars / Boats Mini PIX Flight Controller - Mission Planner Radiolink Mini-PIX FCS (Version 1.2) Set Includes 1x Mini-PIX Autopilot FCS 1x Buzzer & Safety Switch 1x Power Module (Support 2-12S) 1x Power Module Connect Cable 1x FC Status Indicate LED 1x FC Status Indicate LED Connect Cable 1x Buzzer & Safety Switch 1x USB Cable 1x Double-sided Adhesive Tape (To take full advantage of the Radiolink Mini-PIX FCS, please add the Radiolink TS100 Mini GPS Module which is sold separately) Radiolink Mini-PIX FCS (Version 1.2) Specifications 39x39x12mm Weight: 12g (without wires) Processor STM32F405VGT6 Sensors Sensor: Gyro MPU6500 Compass: QMC5883L Barometer: LPS22HB
