KST Servo - DS135MG Wing Servo - 5.2kg / 0.12 Sec (4.8-6.0V DC)

$32.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

SPEXDRONE-STORE

View Store

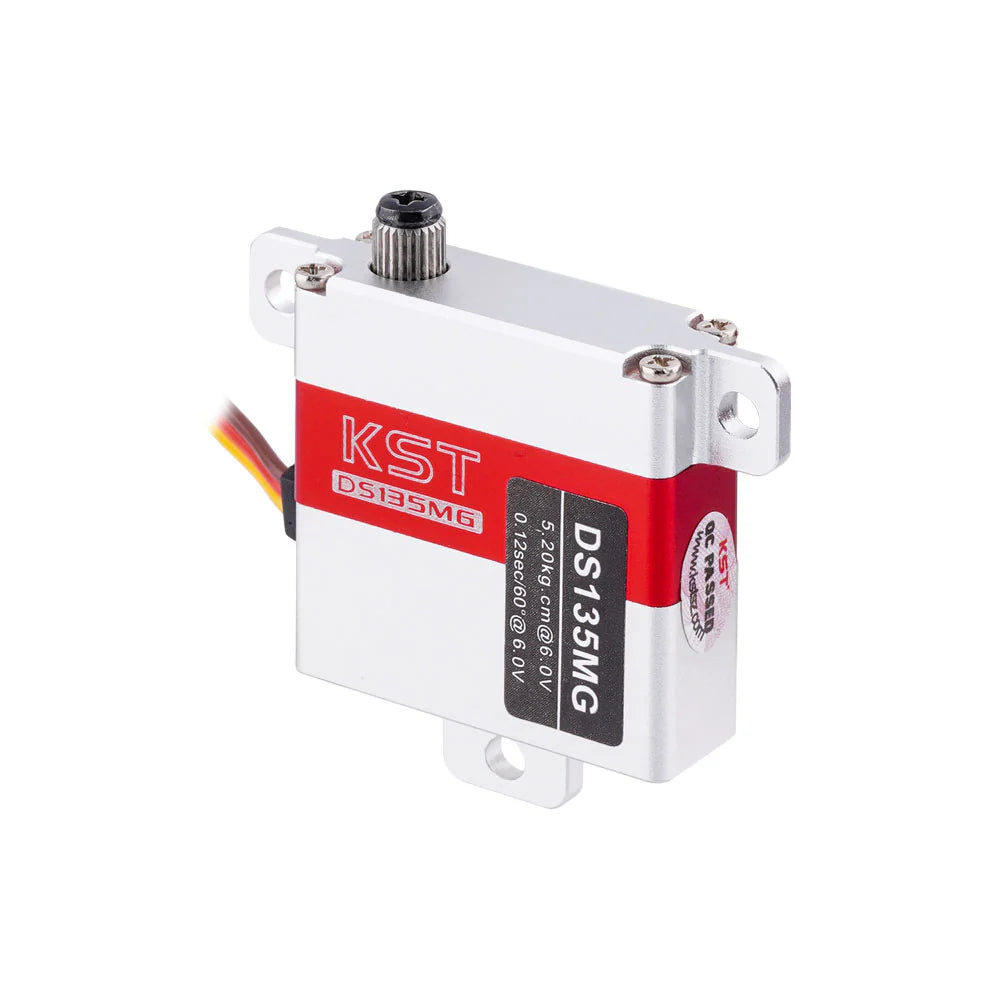

KST Servo - DS135MG Wing Servo - 5.2kg / 0.12 Sec (4.8-6.0V DC) The KST DS135MG Wing Servo is an amazingly good metal cased servo. It is exactly the same size and has 90% of the performance and build quality of the market leader, for much less the price. Like the more expensive servo it has no geartrain slop. At only 10mm thick this great wing-servo can easily fit in thin glider and jet wings. With a massive 5.2 Kg.cm torque the KST DS135 is appropriate for small to medium sized UAV's, F3F, F3B, F3J, F5J, all fast gliders, and jets.  Note: No longer supplied with metal servo arms Features Hardened Steel Gears Extreme torque and Excellent speed CNC aluminum case Two Ball Bearings Programmable Specification Iteam: DS135MG Digital Metal Servo Operating Voltage: DC4.8V-6.0V Rated Voltage: DC4.8V Size: 30*10*30mm Torque: 5.2Kgf.cm@6.0V / 4.3Kgf.cm@4.8V Speed: 0.12sec/60°@6.0V / 0.15sec/60°@4.8V Default Travel Angle: ±50° = 100° Total Operating Temperature Range：-10℃……+65℃ Soft Start: Programmable Programmable: Yes Case Material: Aluminum Alloy Motor Type: Coreless DC Motor Gear Set Material: Hardened Steel Position Sensor: Potentiometer Case Dimensions: 30mm*10mm*29.6mm±0.2mm Weight: 23g±10% Package Including 1 * DS135MG Servo  1 Pack of Accessories Download DS135MG Servo Technical Specification
