Holybro PixHawk Micro OSD V2.0 (13013)

$20.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

SPEXDRONE-STORE

View Store

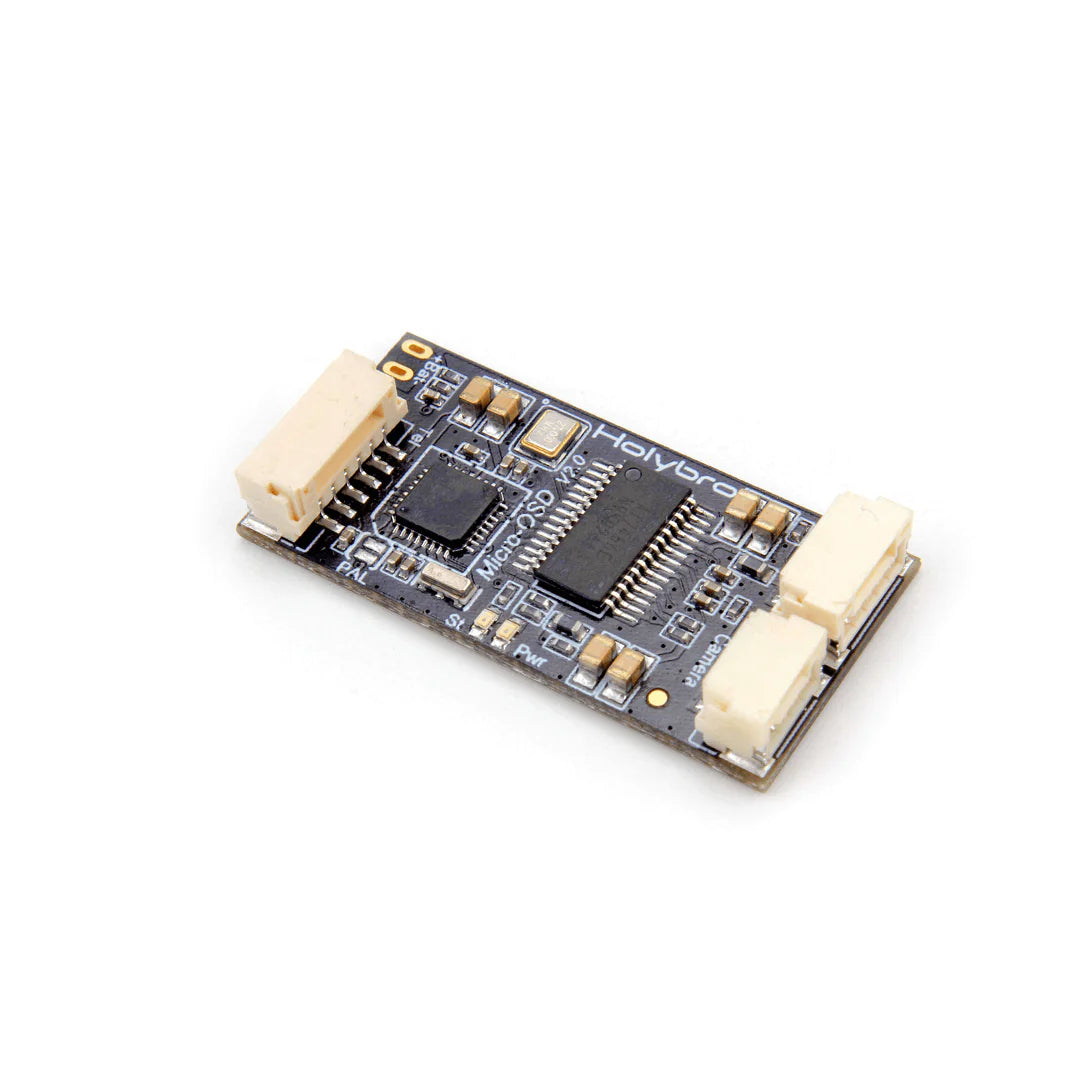

Holybro PixHawk Micro OSD V2.0 (13013) Micro sized Arduino-based on-screen display board. It's tailored for use with ArduPilot Mega and the MAVlink protocol, and designed to be as compact as possible. It's main components are an ATmega328P 8 bit microcontroller with an Arduino bootloader, and a MAX7456 monochrome on-screen display. Specifications: ATmega328P with Arduino bootloader MAX7456 monochrome on-screen display Standard 6-pin ISP header Solder jumper for PAL video option Exposed test points for HSYNC and LOS Dimensions: 17.5*35mm Weight: 3g Note: BAT+ is directly connected with VTx and Camera (Pay attention to the max with stand voltage of your equipment) PIN MAP Included: Micro OSD * 1GH 6P cable * 1GH 4P cable * 1GH 3P cable * 1 Manual: Holybro_Micro_OSD_V2_Manual.pdf Download: Holybro_MicroOSD_v2.0 Update software
