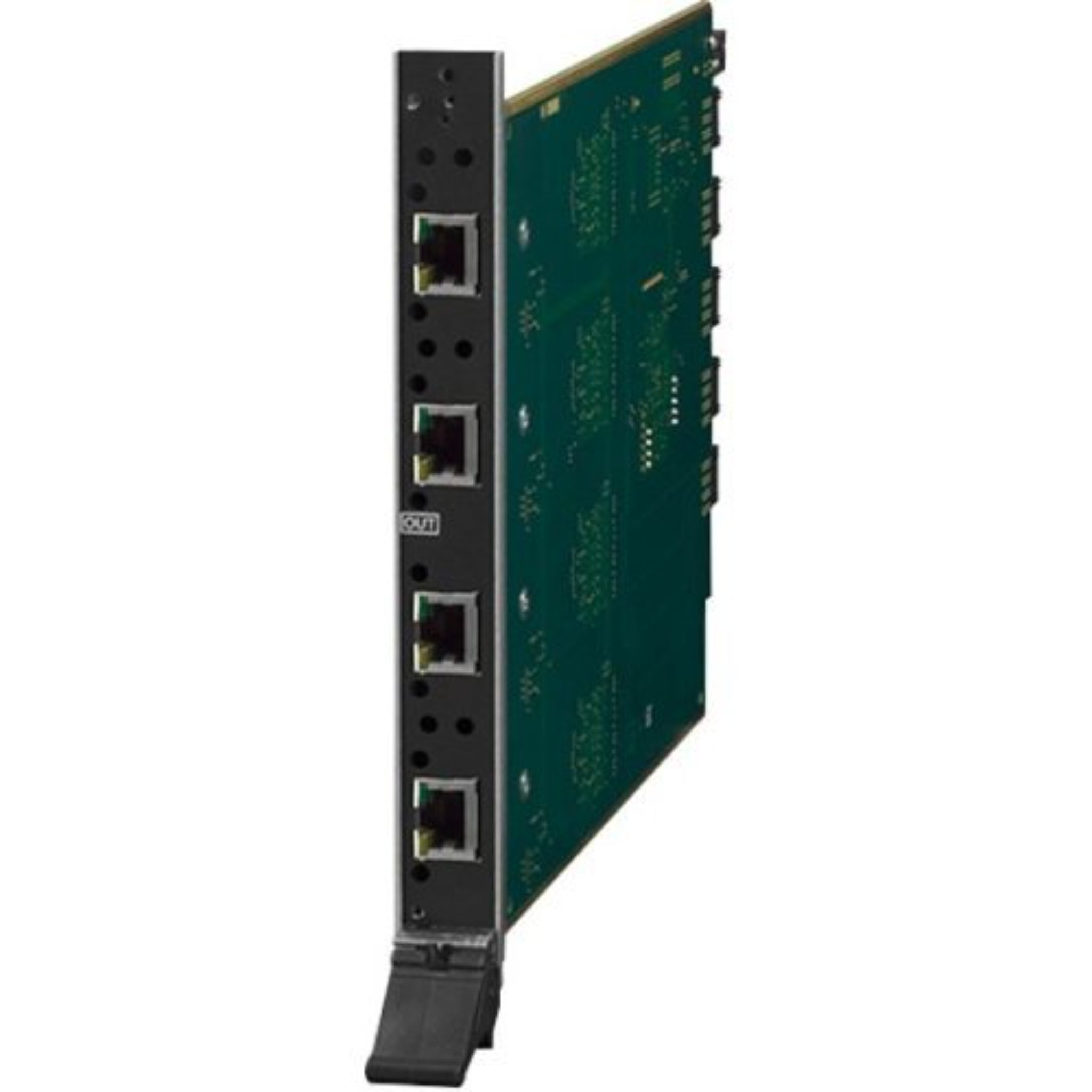

AMX Enova DGX DXLinkTM Twisted Pair Output Board

Product Overview        The DGX-O-DXL is a HDCP compliant twisted pair cable output board for the Enova DGX 8, 16, 32 and 64 Digital Media Enclosures.  It has four connections per DXLink Output Board and is designed to transmit audio and video to DXLink Twisted Pair Receivers while passing bi-directional control and Ethernet over one standard twisted pair cable up to 100m.  DXLink Power is available from the DXLink Output Board to power DXLink Twisted Pair Receivers. Main Features       Only One Cable - Send audio and video while passing control, Ethernet and power over one twisted pair cable    Send HDMI signals up to 100 meters - Extend the reach of the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling     Standard Twisted Pair Cable - Save time and effort in installation by leveraging pre-existing cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details    Hot Swappable - Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards   HDCP Compliant         General Information      Name: AMX DGX-O-DXL Enova DGX DXLinkTM Twisted Pair Output Board, Harman International Industries, Inc, AMX by Harman      Category: AMX by Harman, Pro AV, Commercial Video Signal Distribution, Pro HDMI Switchers       User Manual       User Manual
