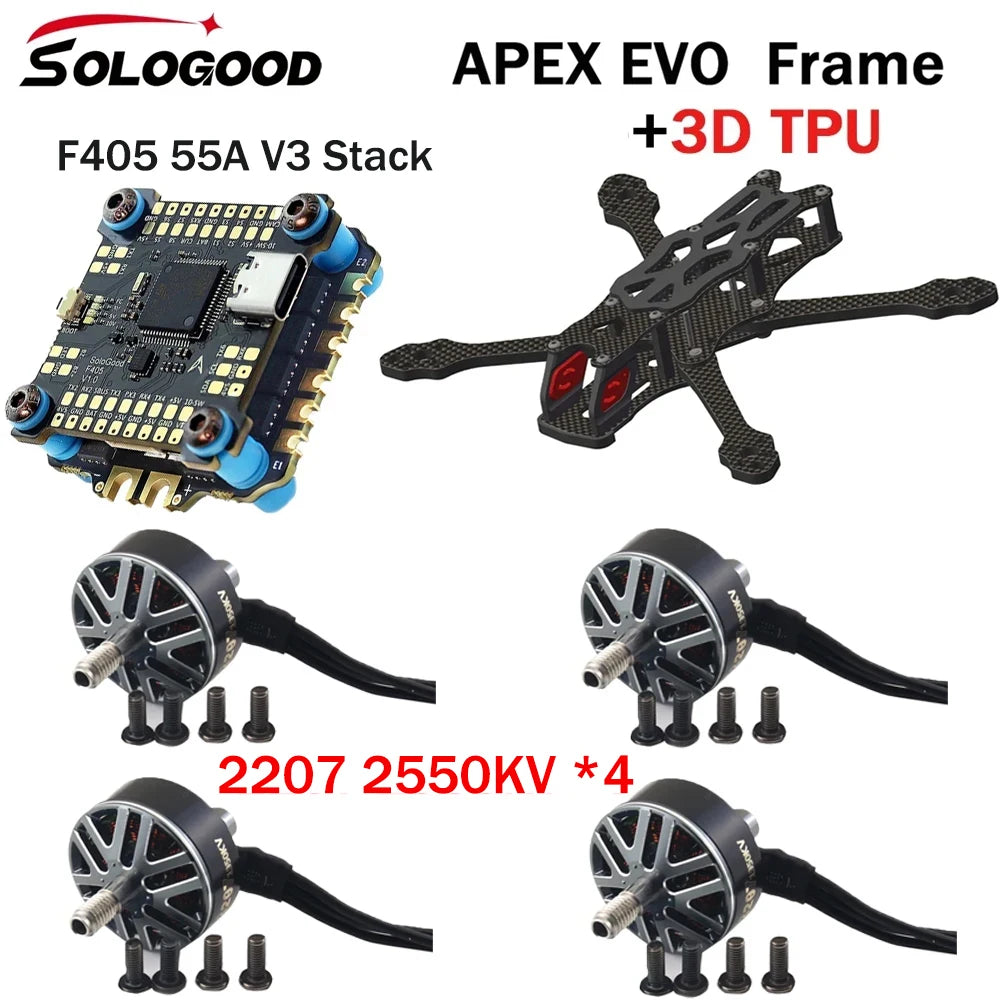

SoloGood APEX EVO Frame Kit F405 55A V3 Stack ICM42688P BLS55A 4in1 ESC 2207 2550KV 2-6S Lipo Unibell Brushless Motor

Specification: Brand Name: SoloGood Model:  APEX EVO. Wheelbase:225mm(5inch). Arm Plate Thickness: 5.5MM. Bottom Plate Thickness: 2.5mm. Upper Plate Thickness: 2.5mm. Side plate thickness: 2mm. Aluminum column height:28 / 20mm. Weight: 130g/Including 3D printed parts 158g(Different production batches will vary ). Material: 3K Carbon Fiber.       SoloGood F405 Stack Input voltage: 3-6S Lipo(11v-26v max) Installing Hole: 30.5*30.5mm, M3 Support Protocols: DShot600/300 Weight: 23g   FC Specifications   Main control: STM32F405 Gyroscope: ICM42688P Barometer: Support SPL-06 OSD: Support (AT7456E) BEC: 10V/2A, 5V/2A UART port: 6 Black box: onboard (16M flash memory) Number of supported motors: M1-M8 Firmware name: BETAFLIGHT: SOLOGOODF405 Input voltage: 3-6S lithium battery (11-30V MAX) Output voltage: VBAT Installation hole: 30.5x30.5mm (4mm aperture) Flight control size: 38.5x38.5mm Weight: 8.1 grams LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication DJI/Vista: Support/6pin Electric regulation TVS protective diode: Yes External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging) ESC/Motor Protocol: DSHOT300/600 Continuous current: 55A Maximum current :65A Installation hole: 30.5x30.5mm (4mm aperture) Sologood BLS55A 4in1 ESC SPEC: Firmware: BLHELI-S: J-H-30-16.7 Continuous current 55A Maximum current 65A Electric dispatch protocol support: DSHOT300/600 Input voltage: 3-6s Galvanometer: Yes TVS diode protection: Yes External capacitor: 1000UF high-frequency electrolytic capacitor Installation hole position 30.5x30.5mm (4mm hole) Size: 41.5mm X42mm Weight: 15g     Specifications: Configuration: 12N14P Stator Diameter: 22mm Magnets: N52H Curved Shaft Diameter: 5mm / Steel Weight: 31.9g (20#150MM wires) Cells (LiPo): 2550KV 3-6S
