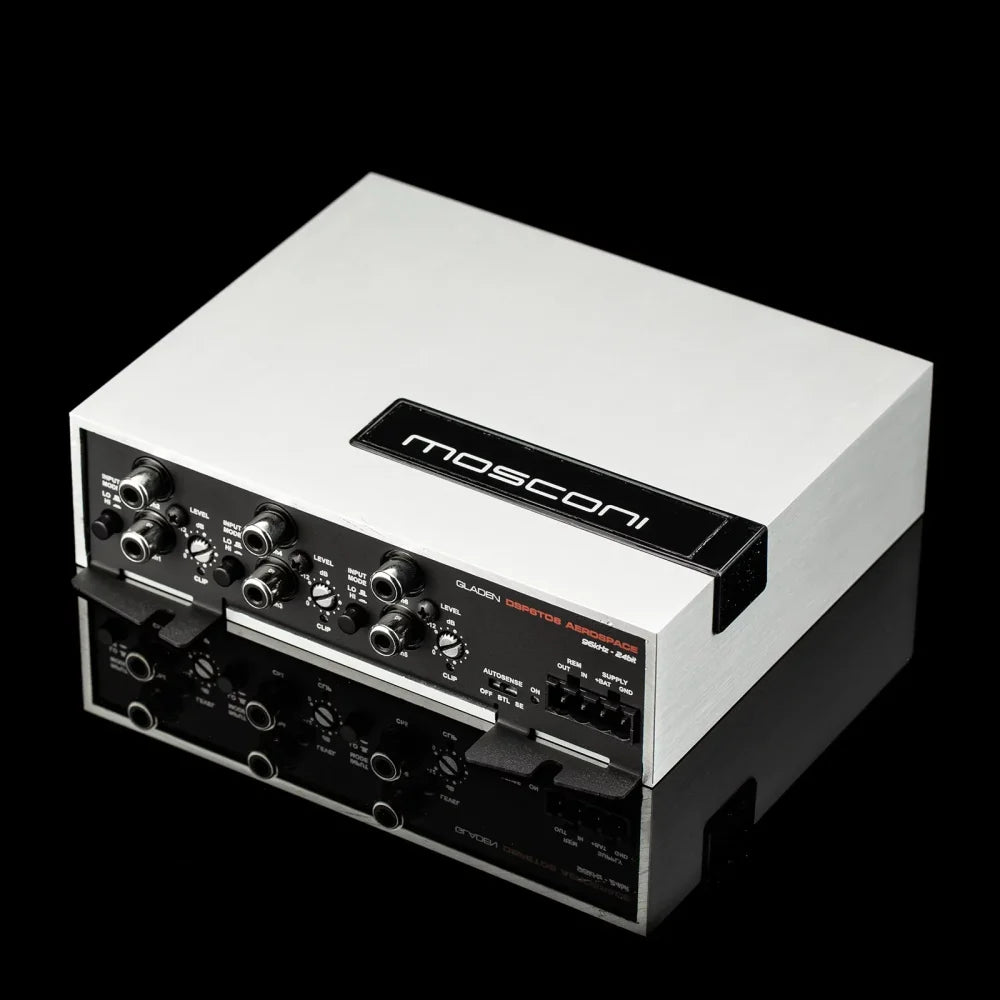

6|8 AEROSPACE MOSCONI DSP DIGITAL SIGNAL PROCESSOR (6 CHANNELS IN, 8 CHANNELS OUT, AUDIOPHILE VERSION) STANDALONE DSP
smscaraudio.com

6|8 AEROSPACE MOSCONI DSP DIGITAL SIGNAL PROCESSOR (6 CHANNELS IN, 8 CHANNELS OUT, AUDIOPHILE VERSION) STANDALONE DSP

$1,299.99
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

SMS Car Audio

View Store

6|8 AEROSPACE (6 CHANNELS IN, 8 CHANNELS OUT, AUDIOPHILE VERSION) FEATURES: 6 channel input 8 channel output DSP Technology made by cooperation MOSCONI-GLADEN Designed and made by MOSCONI, Italy OVERVIEW MOSCONI DSP 6TO8 AEROSPACE 96 kHz / 24 Bit  High Resolution-Audio With the incredibly powerful chip, the GLADEN DSP 6to8 AEROSPACE is faster than ever. We have developed the best DSP since MOSCONI exists. Without limit in signal processing...96kHz /24 bit "A GAME CHANGER". TECHNICAL DATA MOSCONI DSP 6TO8 AEROSPACE INPUTS: 6 x RCA (Cinch), switchable high/ low level with autosense 1 x S/PDIF digital optical 1 x RCA digital COAX 4 of them freely selectable as prioritized auto-fade/aux ATOM Mixer menu with dynamic preset switching and "trigger" control OUTPUTS: 8 x RCA analog 1 x S/PDIF optical (freely assignable, volume controlled) 12 V remote-out EQUALIZER: Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40 Fixed: channels front (1 - 4) Assignable channels: 5 + 6 = front, rear 7 + 8 = sub, center, free FILTERS: 10 per channel freely configurable Highpass, lowpass, shelf, notch, allpas, peak EQ Slope 6 - 120 dB/Oct, variable Q, time and level OTHERS: Time correction 0 - 12 ms (0.010 ms steps) Input delay (channels 1 - 6) for correction of run-time delayed plant systems Phase shift 0 - 180° Level adjustment outputs (0.5 - dB steps) Mute function 4 x preset memory (switching without sound interruption) Dimensions: 150 x 125 x 40 mm (incl. mounting flange) SPECIFICATIONS: Input Mode: Low Level {LL} / High Level {HL} Input Impedance: 12Kohm (LL) / 47ohm (HL) Input Sensitivity: 1.2 – 8 Vrms (LL) / 3 – 20Vrms (HL) Input Voltage Regulation: -16.5dB ÷ 0dB Max Output Signal: 8Vrms Output Impedance: 600 ohm T.H.D. Distortion: <0.003% @ 4Vrms Frequency Response: 10Hz-40Khz Channel Separation: >90dB (@100Hz) Supply Voltage: 10V ÷ 16V DC Autosense: Off / BTL / SE Remote Output: 100mA max Communication Peripherals: USB, RCD/RC-Mini (optional), MOS-BTM (optional) Size 150x125x40mm (including fixed feet) 5.90" x 4.92" x 1.57"
